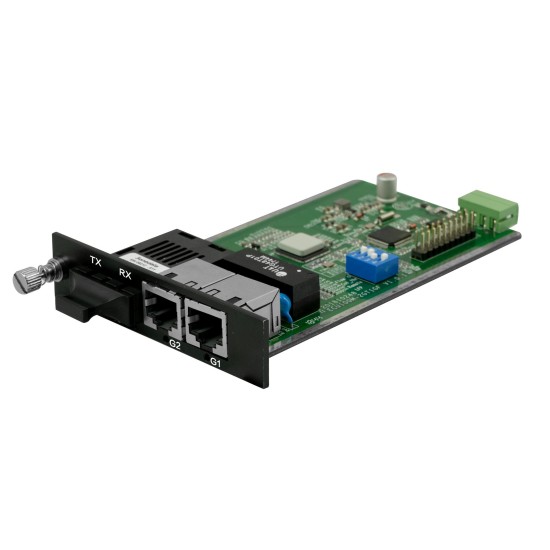

ECU100-1T1F – Industrial Fast Ethernet Slide-In Card with 1×RJ45 and 1×Fiber 100Base-FX

The ECU100-1T1F is an industrial slide-in Fast Ethernet card designed for modular media converter chassis and RACK-mounted platforms. It integrates 1× Fast Ethernet RJ45 port (10/100Base-T(X)) and 1× fiber port (100Base-FX, 1×9), offering reliable and EMI-resistant communication for industrial automation, SCADA and long-distance data transmission.

The card uses a store-and-forward switching architecture with an ultra-low latency of <10 μs, ensuring deterministic performance under real-time workloads. It is fully compliant with IEEE 802.3 / 802.3u / 802.3x, ensuring seamless integration with existing Fast Ethernet networks.

The RJ45 port supports auto-negotiation, auto-MDI/MDI-X, and both full- and half-duplex operation. The 100Base-FX optical interface enables stable long-distance communication and complete immunity to electromagnetic interference, making the module suitable for demanding industrial, energy, transport and smart-city environments.

Switching performance is powered by a 2K MAC address table, 448 KB packet buffer and 2.8 Gbps backplane bandwidth, which are characteristic of Fast Ethernet models within the ECU100 series :contentReference[oaicite:1]{index=1}. These parameters ensure low packet-loss and stable data flow even under heavy traffic conditions.

Designed for harsh field operation, ECU100-1T1F supports an extended temperature range of -40…75°C, up to 95% RH (non-condensing), and offers robust EMC immunity compliant with IEC 61000-4-2 / 4-4 / 4-5 (ESD, EFT, surge).

The module operates from a 5 VDC supply and features low power consumption: ≤1.5 W idle and ≤2.0 W at full load. Its compact dimensions (84.5 × 20 × 122.5 mm) and weight (≤80 g) allow for quick installation in modular converter platforms and RACK systems.

Key Features of ECU100-1T1F

• 1× Fast Ethernet RJ45 (10/100Base-T(X))
• 1× Fiber 100Base-FX (1×9)
• Store-and-forward switching, latency <10 μs
• 2K MAC table, 448 KB buffer, 2.8 Gbps backplane
• Auto-negotiation, auto-MDI/MDI-X, flow control
• Power supply: 5 VDC, consumption ≤2.0 W
• Operating temperature: -40…75°C
• EMC compliance: IEC 61000-4-2 / 4-4 / 4-5
• Compact slide-in design, ≤80 g
• CE, FCC, RoHS certified

Typical Applications

• Ethernet-to-fiber conversion in modular RACK systems
• SCADA, telemetry and industrial automation
• PLC communication networks
• Real-time monitoring and IP-based data transmission
• Transportation, ITS and smart-city infrastructure
• Industrial environments with high EMC requirements

The ECU100-1T1F is a reliable and cost-effective Fast Ethernet module delivering stable copper and fiber connectivity for demanding industrial applications.
