M-BUS SPLITTER – M-Bus line splitter for sharing meters between two masters

M-BUS-SPLITTER is M-BUS SPLITTER – module for sharing an M-Bus line between two masters.

M-Bus line splitter for sharing meters between two masters – model M-BUS SPLITTER | Consteel Electronics
5-10 days
M-BUS SPLITTER – M-Bus line splitter for sharing meters between two masters
  • Stock: 5-10 days
  • Brand: Relay
  • Model: M-BUS-SPLITTER
Based on 0 reviews. - Write a review
1,466.40 zł
Add to Cart
Ask the expert!
Add to Wish List Compare this Product
A proven choice for industrial installations.
Ask for compatibility and model selection.
Additional discounts for registered customers.
Worldwide shipping with DHL or Inpost
Secure payments with Paypal or Credit Card
Technical support in English language
Up to 14 days of free sample testing

Full design package: User manual, CE declaration, CAD, PDF, certificates and test reports

If you're preparing technical documentation or an installation design, you can receive a complete set of design materials for this model. This is a quick way to gather the required documents for audits, acceptance, or project documentation.

  • Device User Manual
  • CE Declaration of Conformity (EU Declaration of Conformity)
  • Mechanical Drawings – CAD (STEP/DWG) or high-quality PDF
  • Additional Certificates and Test Reports (if available for the model)
Request a package: User manual, CE declaration, CAD, PDF, certificates, test reports

M-BUS SPLITTER – module for sharing an M-Bus line between two masters.

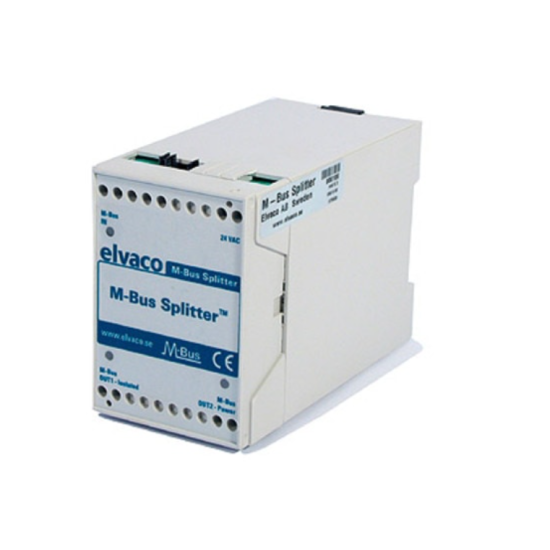

M-BUS SPLITTER is a dedicated M-Bus line splitting module designed to provide simultaneous access for two independent M-Bus masters to the same meters. The device is intended for applications where one or more M-Bus meters must be read independently by two different supervisory systems.

Key product features

  • Sharing of up to 4 M-Bus meters between two M-Bus masters
  • Two M-Bus outputs (OUT1 – isolated, OUT2 – powered)
  • Support for two-wire, polarity-free M-Bus lines
  • Compliance with EN 13757 standard
  • Manufacturer-independent operation with standard M-Bus meters
  • Configurable M-Bus baud rates (300 / 2400 Bd)
  • Automatic scanning of up to 4 M-Bus slave devices
  • DIN rail or wall mounting

Operating principle

M-BUS SPLITTER is installed between the connected M-Bus meters and two independent M-Bus masters. Each master can perform independent readout operations without interfering with the other system. The splitter supports up to four M-Bus meters, which must be configured with unique primary addresses in the range from 1 to 250.

Power supply and communication

M-BUS SPLITTER can be powered directly from the M-Bus line via the OUT2 output. In installations with multiple meters or where the available M-Bus voltage is insufficient, an external power supply of 24–35 VAC or 30–40 VDC can be used. Device status and communication activity are indicated by integrated LED indicators.

Configuration

Configuration of the operating parameters is performed using onboard configuration jumpers. These allow setting the M-Bus baud rate, scan interval and operating mode. After any configuration change, the device automatically initiates a scan of the connected M-Bus meters.

Typical applications

M-BUS SPLITTER is used in building metering systems, district heating substations and industrial installations where parallel access to meter data is required. Typical use cases include simultaneous data acquisition by a billing system and a building management system (BMS).

M-BUS SPLITTER is a practical and reliable solution for sharing M-Bus meters between two independent master systems. It ensures secure communication, flexible power supply options and easy integration in professional M-Bus installations.

Need assistance integrating an M-BUS SPLITTER or designing an M-Bus metering system? Contact our consultant: CONTACT
