Panel PC PPC-212
To be confirmed

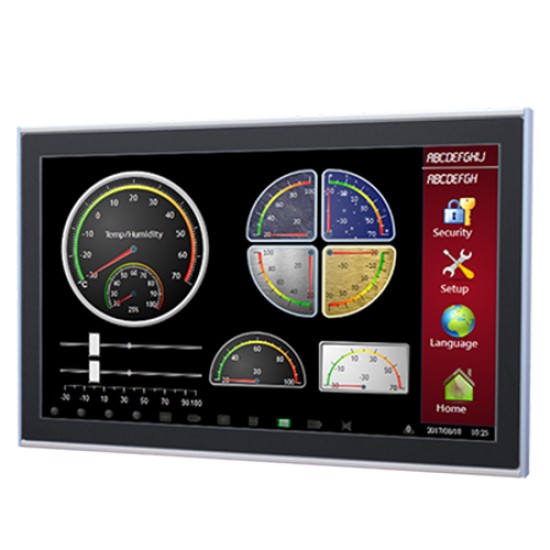

21.5" Fanless Multi-touch Panel PC with Intel® Celeron® J1900 Processor.
The PPC-212 is a panel PC for use in industrial areas such as ticket machine and the HMI sector. It is equipped with an internal SATA 2.5" HDD and mSATA Socket. It has a possibility of panel or VESA mounting.
Features:
- 21.5" FHD LED Panel with Projected Capacitive Touch Display
- Embedded Intel® Celeron® J1900 2.0 GHz Processor
- Internal SATA 2.5" HDD and mSATA Socket
- Supports Two-finger Touch Control while Wearing Gloves

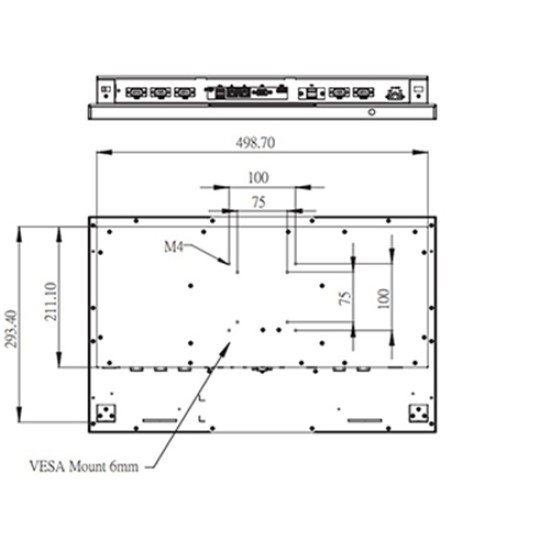

- Panel and VESA Mounting
Specification:
Processor System
- CPU: Intel® Celeron® Processor J1900
- Frequency: Quard-Core up to 2.0 GHz
- System Chipset: N/A
- L2 Cache: 2 MB
- BIOS: UEFI
Memory
- Technology: DDR3L 1333 MHz SDRAM
- Max. Capacity: 8 GB
- Socket: 1 (204-pin SO-DIMM)
Display
- Panel Size: 21.5” LED Panel
- Resolution: 1920 x 1080 (FHD)
- Viewing Angle: 85 x 85 (H) x 80 x 80 (V)
- Brightness: 250 (cd/m2)
- Color Support: 16.7M
- Contrast Ratio: 1000:1
- Response Time: 5 (msec)
- HDMI: HDMI 1.4a up to 1920 x 1200
- Three Display: LCD + VGA or LCD + HDMI
Touchscreen
- Touchscreen Type: Projected Capacitive
- Surface Hardness: 7 Mohs
- Durability: N/A
- Transparency: 90% (±3%)

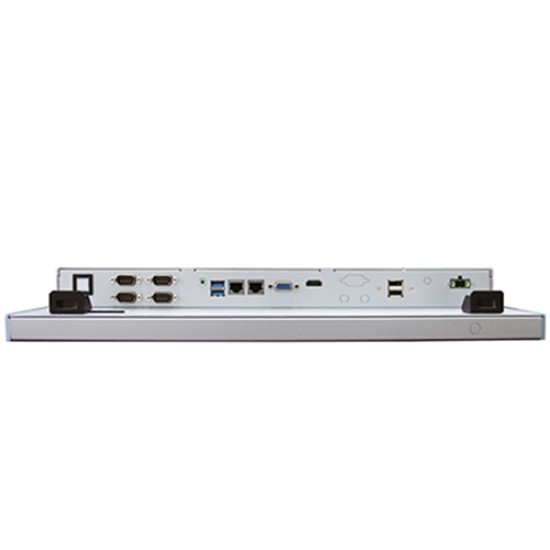

I/O Interface
- USB: 2 USB 3.0, 2 USB 2.0
- Serial Port: 4 COM (3 RS-232, 1 RS-232/422/485)
- Digital I/O: Optional : 8-pin Digital I/O (DB-9 connector, Option)
- Expansion: 2 Mini PCIe (1 full-size Mini PCIe or mSATA, selected by jumper setting; 1 half-size Mini PCIe)
Ethernet
- Controller: Dual GbE, 10/100/1000 Mbps (Realtek RTL8111G-CG)
Audio
- Chipset: Realtek ALC662 High De nition Audio (HD)
- Connector: Line out
Storage
- mSATA: Supports either mSATA or full-size Mini PCIe, selected by jumper setting
- SATA II: 1 Swappable 2.5” HDD/SSD
Power
- Power Supply Voltage: Supports 9-36 V DC input
- Connector Type: 2-Pin Terminal Block, Phoenix Connector
- Power Consumption (Typical): 1.6 A @ 12 V (19.2 W)
- Power Consumption (Max):2.75 A @ 12 V (33 W)
- Battery: Lithium 3 V / 210 mAH
Environment
- Operating Temperature: 0~50o C (32~122o F) w/ 2.5” SSD
- Storage Temperature: -40~85o C
- Vibration: 5-500 Hz, 0.026 G2/Hz, 2.16rms, X, Y, Z, 1 hour per ax
- Certifcation: CE, FCC Class A
General
- Ingress Protection: IP54

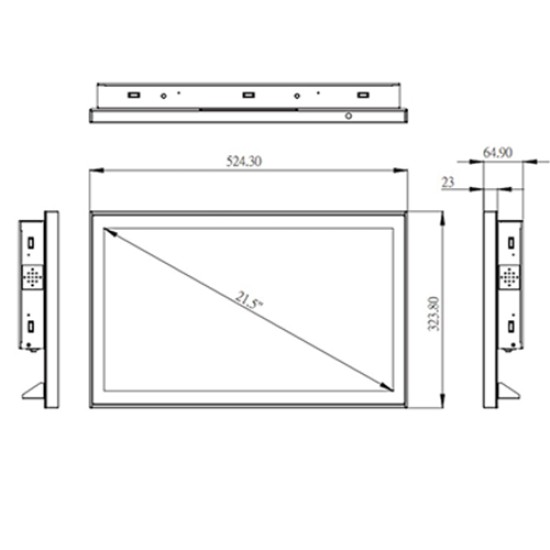

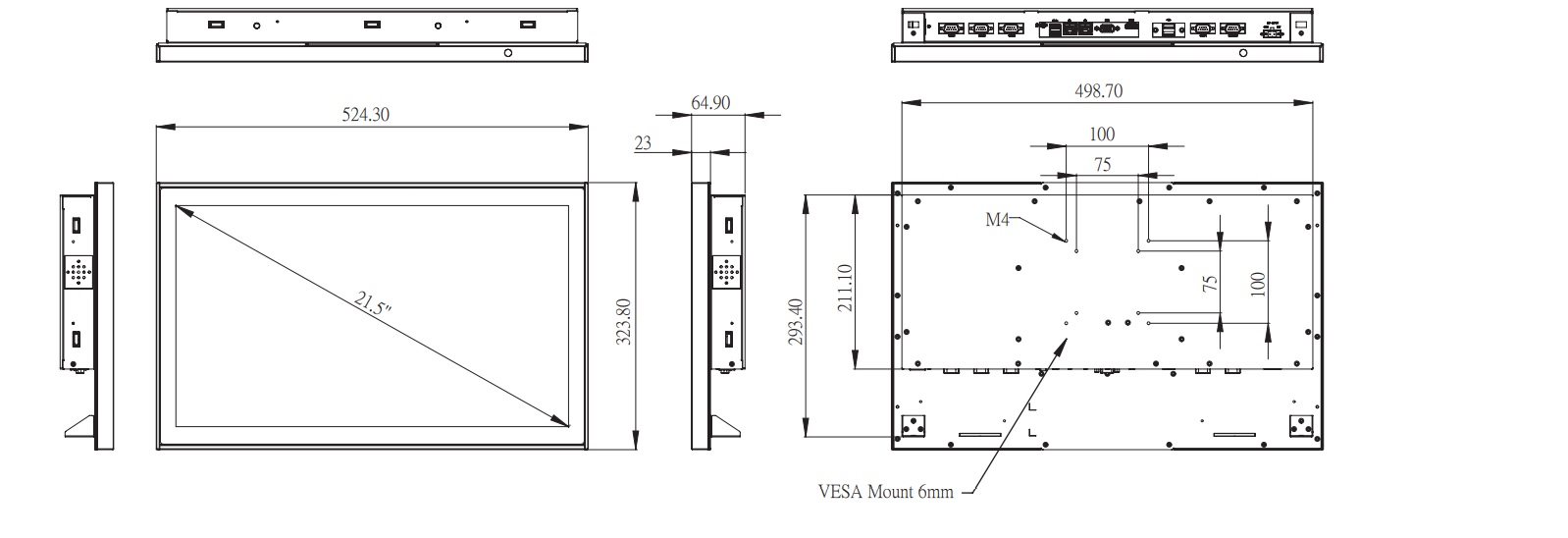

- Dimensions (L x W x H): 524.3 x 323.8 x 64.9 mm (20.63” x 12.75” x 2.55”)
- Weight: 6.99 kg (15.41 lb)
- Operating System: Windows 7/8.1/10, WES7-E/P, WE8S
