Name: CAN-8424
Brand: ICPDAS
SKU: 5525
Price: 2053.75 PLN
Availability: InStock

CAN-8424

2-3 weeks

CAN-8424

Stock: 2-3 weeks
Brand: ICPDAS
Model: CAN-8424

Based on 0 reviews. - Write a review

2 053,75 zł

Qty

Add to Cart

Ask the expert!

Add to Wish List Compare this Product

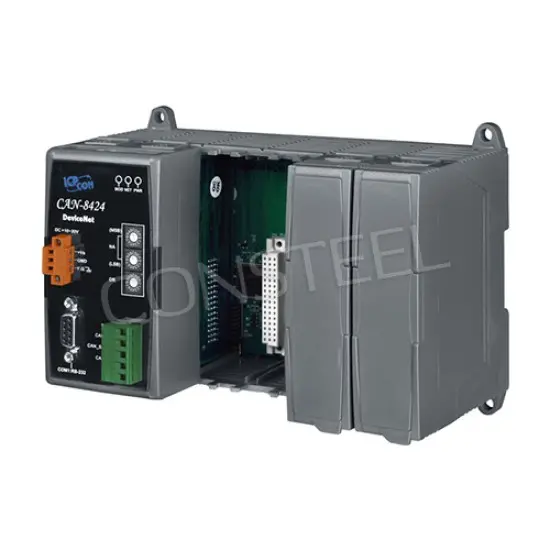

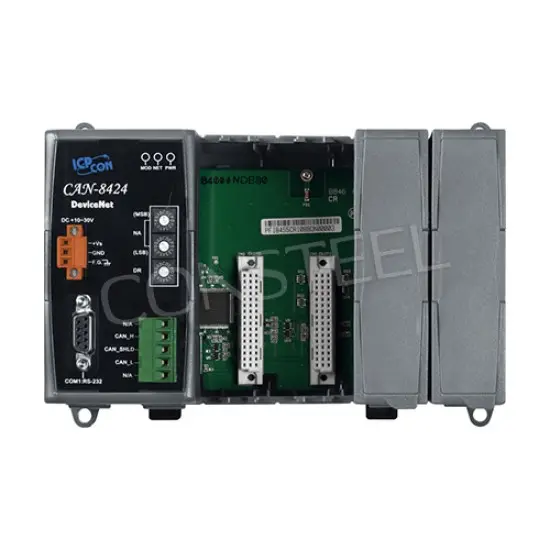

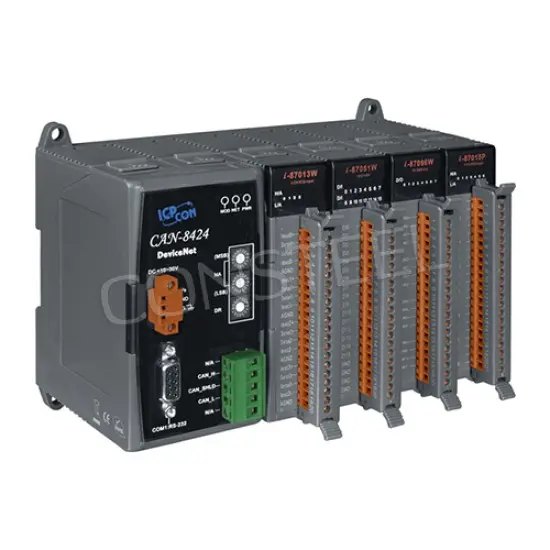

DeviceNet Remote I/O Unit with 4 I/O Expansion Slots.

The CAN-8124/CAN-8224 main control unit is specially designed for the slave device of DeviceNet protocol. It follows the Specification of DeviceNet. In order to expand I/O channel more flexible, an CAN-8x24 supports 1/2/4 slot(s) for I/O expansion and suits with a lot of ICP DAS DI/AI/DO/AO modules.

Users can choose DI/DO/AI/AO modules of I-87K series or I-8000 series to fit the customized practice applications. In addition, we also provide CAN Slave Utility to allow users to create the EDS file dynamically. The EDS file is based on DeviceNet and can be compatible with different DeviceNet master interfaces.

Features:
Number of Nodes: 64 max
Baud Rate: 125, 250, 500 kbps
Support Message Groups: Group 2 only Server
I/O Operating Modes: Poll, Bit-Strobe, Change of State / Cyclic
Device Heartbeat & Shutdown Message
Produce EDS file Dynamically
No. of Fragment I/O: 128 Bytes max. (Input / Output)
MAC ID Setting by Rotary Switch
Baud Rate Setting by Rotary Switch
Status LED: NET, MOD, PWR
Support Hot Swap and Auto-Configuration for high profile I-87K I/O Modules
Warranty: 12 months
Certifications: CE, FCC Class A

General technical parameters
CAN ports	1x CAN
Protocol support	DeviceNet
Industrial grade
Optoisolation	3000 VDC, 2500 Vrms
Operating temperature	-25°C to 75°C
Input voltage	10~30VDC
Mount	DIN rail, Wall mount
