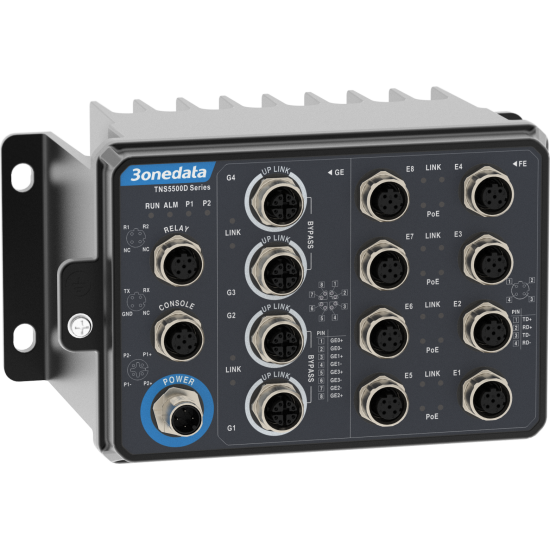

TNS5500D-8GP4GT-P110 – 12-port Layer 2 EN50155 Industrial M12 Gigabit PoE Switch, IP67, 110VDC

TNS5500D-8GP4GT-P110 is a rugged Layer 2 managed industrial Ethernet switch designed for extreme operating conditions in railway, transportation and mobile automation systems. Fully compliant with EN50155, EN50121-3-2 and EN45545, it uses vibration-resistant M12 connectors to ensure secure and stable network communication in on-board systems, PIS, signaling and CCTV installations.

This model integrates 8 × Gigabit PoE M12 ports (X-coded) and 4 × Gigabit M12 ports (X-coded), making it a high-performance solution for applications requiring both high bandwidth and power delivery over Ethernet. Each PoE port supports up to 30 W in accordance with IEEE 802.3af/at, significantly reducing additional power wiring in vehicles and mobile infrastructure.

The switch offers advanced Layer 2 management functions including STP/RSTP/MSTP, ERPS (G.8032), 802.1Q VLAN, QoS, IGMP Snooping, LLDP, port trunking, port mirroring and comprehensive security features such as ACL, 802.1X, SSH and storm control. Management can be performed through WEB, CLI (RS-232), Telnet, SNMP v1/v2c/v3 and SSH, ensuring full control and smooth integration with supervisory systems.

The P110 variant operates from a 110VDC (66–156VDC) power supply. A fully sealed IP67 metal enclosure ensures dust and water resistance, while the fanless design with an external heat sink guarantees reliability in demanding temperature ranges from -40°C to +75°C. This makes the switch suitable for mission-critical railway and industrial environments.

Key Features of TNS5500D-8GP4GT-P110

• 8 × Gigabit PoE M12 (X-coded) – up to 30 W per port
• 4 × Gigabit M12 (X-coded)
• Certified according to EN50155, EN50121-3-2, IEC61373, EN45545
• IP67 rugged metal housing
• High EMC immunity: ESD ±15 kV, EFT ±4 kV, Surge ±4 kV
• Redundancy: Ring, ERPS (G.8032), STP/RSTP/MSTP, Loop Detection
• Management: Web, CLI, Telnet, SNMPv1/v2c/v3, SSH
• Security: ACL, 802.1X, SSHD, Storm Suppression
• Two bypass groups for uninterrupted communication during power failures
• Wide temperature range: -40…+75°C

Interfaces

• 8 × Gigabit PoE M12 (X-coded), 10/100/1000Base-T(X)
• 4 × Gigabit M12 (X-coded), 10/100/1000Base-T(X)
• M12 alarm port – 1 relay output (1A@30VDC)
• M12 RS-232 console port for CLI
• LED indicators: Power, Alarm, RUN, Link, PoE

Switching Performance

• Store-and-forward architecture
• MAC table: 16K entries
• Buffer: 12 Mbit
• Backplane bandwidth: 56 Gbps
• Latency: <10 μs

Power Supply

• 110VDC input (66–156VDC)
• M12 4-pin A-coded power connector
• Reverse polarity protection

Environmental Specifications

• Operating temperature: -40…+75°C
• Storage temperature: -40…+85°C
• Humidity: 5–95% (non-condensing)

Physical Characteristics

• Metal IP67 enclosure
• Wall mounting
• Dimensions: 178 × 104 × 92 mm
• Weight: 1.57 kg

The TNS5500D-8GP4GT-P110 is a highly reliable Gigabit M12 Ethernet switch designed for heavy-duty railway, transportation and industrial systems requiring maximum network availability, environmental durability and high PoE power delivery. With 8 Gigabit PoE ports, strong redundancy mechanisms and comprehensive management features, it is an excellent fit for onboard CCTV, PIS, telematics, automation and mission-critical communication networks.
