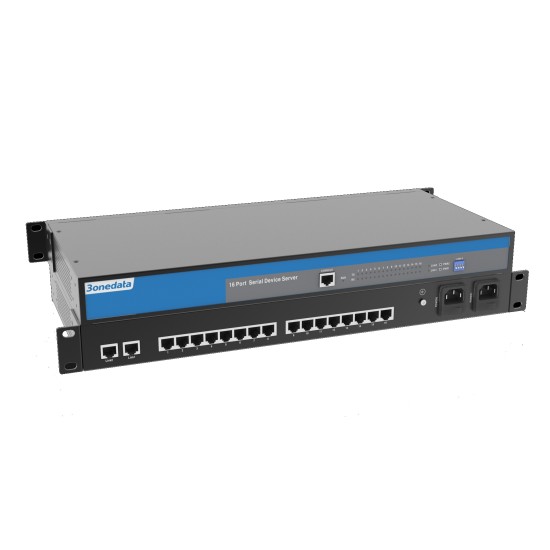

NP3116T-16D(3IN1)

Industrial Serial Port Connecting Server with 16 Serial ports and 2 Ethernet ports.

NP3116T-16D (RS-232/485/422)-P(85/265VAC) is a serial port connecting server that can provide serial device with network connectivity. It provides 16 ports RS-232/485/422 and 2 channels 85~265VAC power input, two IP addresses and two MAC addresses for convenient bridging on two network segments, which allows the scattered serial devices and hosts to be centrally managed in an easy and convenient way through network.

It supports TCP, UDP, ARP, ICMP, HTTP, DNS and DHCP protocols, virtual serial driver access mode and automatic recovery of network. In addition, NP3116T-16D (RS-232/485/422)-P(85/265VAC) provides powerful management and configuration tools based on Windows and WEB management interface, guiding users' configuration of the devices step by step. All configurations can be done through the network or serial port. It allows users to configure flexibly the IP address, Server or Client mode, size of packet, etc. Through simple settings, serial devices can access Internet immediately.

Features:

• Support 16 RS-232/485/422 ports and 2 10Base-T/100Base-TX adaptive Ethernet ports
• Support two IP addresses and two MAC addresses
• Support 300bps ~ 115200 bps unobstructed transmission
• Support TCP Server, TCP Client, UDP Server, UDP Client, UDP Multicast, UDP Rang, Pair Slave, Pair Master, and Real Com working modes
• Support cross-gateway, router communication
• Support polling mode
• Support delimiter matching communication
• Support FIFO function
• Support 32-bit IP address mapping table
• Compatible with various virtual serial port management software
• Support standard TCP/IP SOCKET application access
• Support Windows serial port driver mode
• Support virtual serial driver access mode and automatic recovery from disconnection
• Provide Windows configuration tools that are easy-to-use and can be used in batch installation
• Support multiple configurations of WEB and serial port
• Low power consumption, two 85~265VAC power inputs

Specification:

Ethernet port

• Standard: 10Base-T, 100Base-TX
• Protocol: support TCP, UDP, APR, ICMP and DHCP
• Signal: Rx+, Rx-, Tx+, Tx-
• Rate: 10/100Mbps
• Working mode: full or half duplex
• Operating mode: TCP Server, TCP Client, UDP Server, UDP Client, UDP Multicast, UDP Rang, Pair Slave, Pair Master, Real Com
• Connector: RJ45

Serial port

• Serial port number: 16-port RS-232/485/422
• RS-485 signal: D+ (A), D-(B)
• RS-422 signal: T+ (A), T-(B), R+(A), R-(B)
• RS-232 signal: DSR, RTS, GND, RXD, TXD, DCD, CTS, DTR
• Parity bit: None, Even, Odd, Space, Mark
• Data bit: 5bit, 6bit, 7bit, 8bit
• Stop bit: 1bit, 1.5bit, 2bit
• Baud rate: 300bps - 921600bps
• Direction control: RS-485 adopts ADDC technology
• Load capacity: support 32 nodes (customizable to 128 nodes) polling
• Connector: RJ45

Transmission distance

• Twisted-pair: 100m (standard CAT5/CAT5e cable)
• Serial port transmission distance:
• RS-485/422: 1200m
• RS-232: 15m

Indicator

• Operation indicator: RUN
• Power indicator: PWR1, PWR2
• Electrical port indicator: LINK1, LINK2
• 16 serial ports COM1~COM16 data sending indicator: TX1~TX16
• 16 serial ports COM1~COM16 data receiving status indicator: RX1~RX16

Power supply

• Input voltage: 85~265VAC
• No-load power: 5.4W@220VAC
• Full-load power: 5.7W@220VAC

Environmental

• Working temperature: -25°C ~ 60°C
• Storage temperature: -30°C ~ 85°C
• Relative humidity: 0% ~ 95% (no condensation)

Mechanical

• Shell: IP40 protection grade, metal shell
• Installation: 1U RACK mount
• Weight: 2.5kg
• Size (LxWxH): 207.9 mm x 441.6 mm x 44.6 mm

Industry Standards

• EMI: FCC Part 15, CISPR (EN55022) class A
• EMS:
• EN 61000-4-2 (ESD) Level 3
• EN 61000-4-4 (EFT) Level 3
• EN 61000-4-5 (Surge) Level 2
• Vibration: IEC 60068-2-6
• Shock: IEC 60068-2-27
• Free fall: IEC 60068-2-32

Warranty: 5 years

Certificates: CE, FCC, RoHS, UL508 (pending)

Packing list:

• NP3116T-16D(RS-232/485/422)-P x 1
• User manual x 1
• Power cable x 1
• CD x 1
• Warranty card x 1
• Certificate of quality x 1
