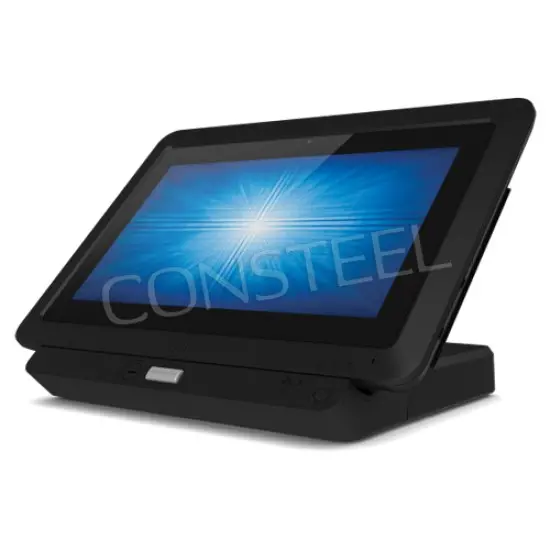

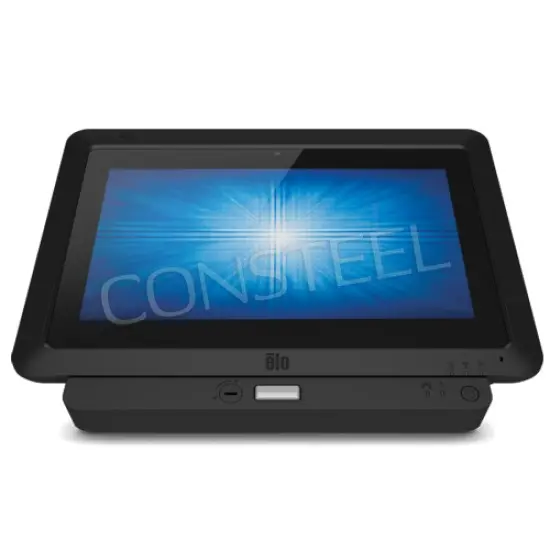

ELO ETT10A1

10.1" Touchscreen Tablet with Intel® Atom™ Processor.

The 10.1-inch Elo touchscreen tablet is designed to help retailers enhance their customer experience and drive sales efficiency through a point-of-service (POS) and point-of-information (POI) platform that is portable, intuitive, reliable and secure. Running Microsoft® Windows® and featuring an Intel® Atom™ processor with solid-state drive, the tablet has been purpose-built to support leading point-of-sale software environments and the mobile POS (mPOS) initiatives embraced by leading retailers. This is a tablet with all the centralized management and security capabilities of the Windows environment, in a commercial form factor that reduces theft risk.

Features:

• Intel® Atom™ N2600 Processor
• Docking station with Ethernet, 3x USB, VGA and additional battery charging
• Integrated MSR, Barcode Reader, and Smart Card Reader
• Windows / Intel support for your existing applications

Specification:

Display

• Size: 10.1"
• Resolution: 1366x768
• Contrast: 800:1
• Aspect Ratio: 16:9
• Brightness:
• LCD: 380 cd/m2
• PCAP: 335 cd/m2
• Response Time: 25 ms
• Viewing Angle: Horizontal: ±85°, Vertical: ±85°
• Touch: PCAP (Projected Capacitive) - up to 4 touches

System

• Processor: Intel® Atom™ N2600 Dual Core
• Frequency: 1.60GHz
• Chipset: Intel® NM10
• BIOS: Phoenix
• RAM: 2GB DDR3 1066MHz
• MEmory: 32GB mSATA SSD, up to 64GB mSATA SSD optional
• Graphics: Intel® HD Graphics 4600
• OS:
• Windows Embedded 7
• No OS

Ports and Others

• USB: 1x USB 2.0 (3x USB when docked in Docking Station)
• Ethernet Port: 1x LAN RJ45 (10/100M) (when docked in Docking Station)
• Wireless:
• WiFi (802.11 b/g/n)
• NFCIP-1 Reader/Writer
• Bluetooth (4.0)
• Audio: 3.5mm audio mic/earphone hidden/protected cover
• Internal speaker
• Autofocus 2.0MP camera on front and back with flash

Power

• Power Consumption (max): 36W
• Power Supply: External AC
• Input voltage: 12V
• MTBF: 50 000 hours demonstrated

Mechanical

• Dimensions (W x H x D): 292.6 mm x 20.1 mm x 207.52 mm
• Weight: 1.13 kg
• Mount: VESA (optional)
• IP protection: IP54

Environmental

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 60°C
• Humidity: Operating: 20% to 80%; Storage: 5% to 95%

Certificates

• UL/cUL
• FCC
• TUV
• CE
• CB
• IDA
• VCCI
• MIC
• NOM
• SII
• ANATEL
• CCC
• SRRC
• UN/DOT 38.3
• ROHS
• REACH
• WEEE

Manufacturer's warranty: 18 months

---
