Name: HD67949-B2
Brand: ADF Web
SKU: 4451
Price: 3173.09 PLN
Availability: InStock

HD67949-B2

3-4 days

HD67949-B2

Stock: 3-4 days
Brand: ADF Web
Model: HD67949-B2

Product Views: 10789

Based on 0 reviews. - Write a review

3 173,09 zł

Qty

Add to Cart

Ask Question

Add to Wish List Compare this Product

Industrial NMEA2000 to MQTT converter, housing type B (wide), DIN rail mount.

HD67949-B2 allow to publish and get the data from/to a NMEA2000 network into/from a MQTT Server. These gates allow quick and easy access to the IoT world and are compatible with IQT servers that support MQTT. MQTT communication can be encrypted using TLS / SSL protocols, ensuring secure communication. The converter is easy to configure thanks to the free SW67949 software.

Specifications:
Ports: 1x Ethernet, 1x CAN
Ethernet protocol: MQTT
CAN protocol: NMEA2000
Data Rates NMEA2000: Up to 1 Mbps
Data Rates MQTT: 10/100 Base-T with autosensing
NMEA2000 connector: 3way 5mm terminal block
MQTT connector: RJ45
Power supply: 8...24VAC 12...35VDC
Power supply connector: 2way 5mm terminal block
Operating temperature: -40°C/+85°C (-40°F/+185°F)

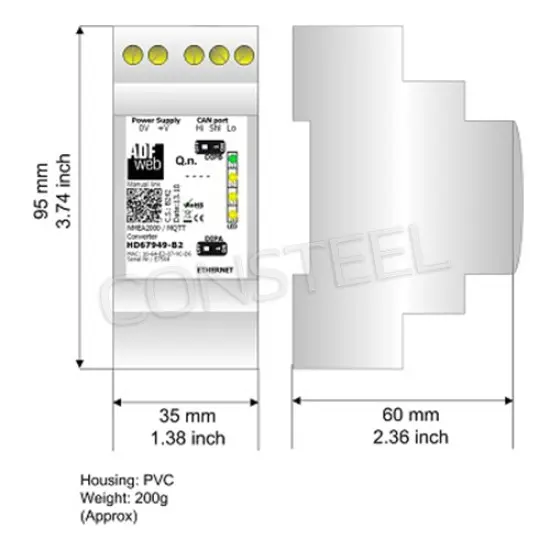

Dimensions: 60 mm x 36 mm x 95 mm (DxWxH)
Weight: 200g approx
Mechanical fixing: DIN Rail mount
Software: SW67949
ORDER CODE: HD67949-B2

Configurator – Software SW67949 FREE DOWNLOAD
Manufacturer's warranty: 24 months

General technical parameters
Ethernet	1x 10/100BaseT(X)
Protocol support	NMEA2000, MQTT
Industrial grade
Casing	Plastic
IP rating	IP20
Operating temperature	-40°C to 85°C
Input voltage	8~24VAC, 12~35VDC
Manufacturer's warranty	24 months

HD67949-USER-MANUAL-EN
