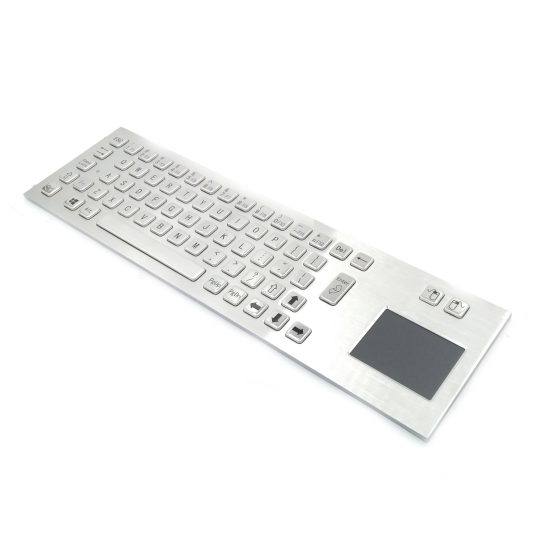

KB001T-P - Panel keypad with touchpad for harsh environments

KB001T-P - Industrial stainless steel panel keypad with touchpad

Robust and reliable in harsh industrial environments

The KB001T-P keyboard is an advanced industrial device designed to operate in the harshest environments. Made from stainless steel, it guarantees high resistance to mechanical damage, dust, and water, meeting IP65 protection standards. Thanks to its panel mounting and robust design, this keypad will prove its worth in areas where reliability and robustness are key. The KB001T-P is ideal for industrial computer systems, manufacturing, and other demanding environments where equipment is exposed to heavy use.

Precision and ease of use

The KB001T-P keyboard features 66 keys made from high-quality stainless steel. Each key features a pressure force of 1N and a stroke of 2mm for comfortable and precise operation. The keys are equipped with a silicone switching mechanism, which guarantees a long life – more than 5 million operations. Thanks to the laser-engraved marks on the keys, the keyboard retains its durability even in harsh environments. In addition, the KB001T-P offers full functionality of alphanumeric keys, arrow keys, and a touchpad, making it a versatile tool for industrial PC systems.

Integrated touchpad for easy operation

The integrated touchpad allows intuitive operation of the system without the need for additional pointing devices. This is particularly useful in environments where limited space requires compact solutions. The touchpad on the KB001T-P operates with precision, making the keyboard ideal for industrial systems, self-service kiosks, and vending machines, where fast response and precise control are crucial.

Vandal-resistant and reliable in public areas

Thanks to its robust construction and panel mounting, the KB001T-P keypad is resistant to vandalism and mechanical damage. This makes it ideal for public areas such as self-service kiosks, vending machines, and access control systems. The stainless steel housing and rear mounting ensure durability and reliability even in the most demanding operating conditions.

Applications in various industrial sectors

The KB001T-P keypad is widely used in various industrial sectors such as food, medical, navigation, and aviation. Thanks to its resistance to water, dust, and mechanical damage, it is ideal for food processing plants where hygiene and durability are key. In the medical industry, the KB001T-P is ideal for use in laboratories and sterile environments where equipment must be easy to disinfect and resistant to chemicals. The KB001T-P keypad will also work well in CNC machines and other industrial equipment requiring precision and reliability.

Feel free to purchase and contact us

If you are looking for a reliable keypad for extreme industrial environments, the KB001T-P is an excellent choice. Get in touch with our team who will help you select the right product according to your requirements. We offer full technical support and advice to ensure the best solution for your business.

Specifications:

• Protection level: IP65; NEMA4X
• Service life: over 5 years
• Interface: PS2, USB
• Supply voltage: +5V DC +/-5%
• Operating temperature: -10°C to +60°C
• Storage temperature: -20°C to +70°C
• Panel dimensions: 392mm x 110mm
• Dustproof, waterproof, vandal resistant
• Mounting type: Panel
• Number of keys: 66 keys, stainless steel
• Touchpad
• Key pressure type: Silicone switching element
• Key life: more than 5 million operations
• Key pressure/keystroke force: 1N/2mm
• Mounting frame: aluminium alloy
• Symbols on the keys: Laser-engraved characters
• Weight: 1.60kg
• All language versions and interfaces available on request

Application:

• Self-service kiosk
• Industrial PC system
• Medical and food industry
• Gaming and vending machine
• Navigation and aviation
• CNC machines and other factory equipment

Warranty: one-year hardware warranty.

Certifications: CE, FCC, RoHS, IP65.
