Panel PC 10.4", aluminum, up to 16GB RAM, mSATA and 2.5" SATA bay, capacitive touch, IP65
Features:
- 10.4" screen with 1024x768 resolution and capacitive touch
- Supports Intel® Celeron® J6412 / 4205U / J1900 / Core™ i5 7200U / i3-8145U
- RAM up to 16GB DDR4 and 8GB DDR3L
- Supports 2.5" SATA bay and mSATA drives
- Fanless design in aluminum housing with IP65 protection
- Windows XP, Windows 7，Windows 8, Windows 10，Linux
- 12~24VDC power supply
- Operating temperature -20°C to 60°C
- 2x 10/100/1000BaseT(X), 2x RS-232/485, 4x USB 3.0,
Nodka Fanless Industrial Panel PC is designed with the utmost in durability and performance, our industrial grade computers have numerous screen sizes and configurations. Nodka can customize industrial grade computers for different industrial applications and worksite conditions. We offer the latest CPUs and internal hardware to ensure receive best-in-class performance and service.
Nodka industrial Capacitive touchscreen Panel PC has rugged IP65, reliable modular structure, Aluminium Alloy chassis and easybus design. The multi-touch Capacitive Panel PCs are designed for installation in the front of a control cabinet or on a mounting arm system.
Specification:

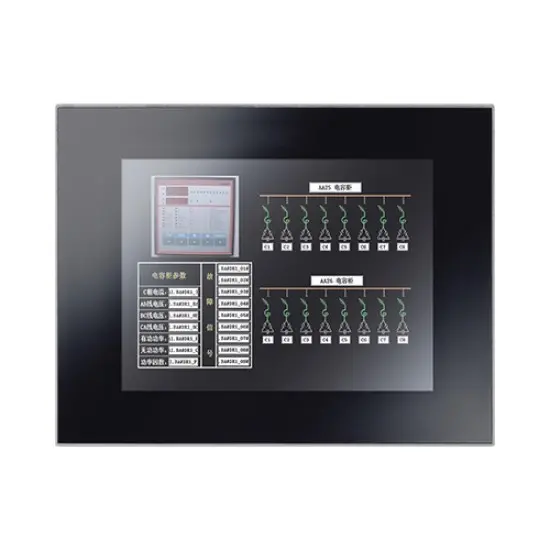

LCD:
- Size: 10.4" TFT
- Resolution: 1024x768
- Colors: 16.7MB
- Active Area: 211.2mm x 158.4mm
- Backlight: LED
- MTBF: 30000hrs
- Pixel Pitch: 0.206 x 0.206
- Luminance: 350cd/m2
- Contrast Ratio: 1:900
- Viewing Angle: (L)75 / (R)75 / (T)75 / (B)75
Touch Screen:
- Touchscreen Type: Multipoint capacitive touch screen
- Transmittance: ≥ 87%
- Controller interface: USB
- Surface hardness: Mohs’7H
- Multi-touch: 10 Points
- Driver Support: Windows XP, Windows 7， Windows 8, Windows 10，Linux
System:
- CPU:
- Base Frequency:
- L3 Cache:
- Chipset: Integrated PCH-LP
- Memory: 1*DDR3L-1600 max to 8GB / 1*DDR4 2400MHz max to 16GB
- Storage: 1x 2.5" SATA bay + 1x mSATA
- OS: Windows 7, Windows 7 Embedded, Windows8, Windows10, Ubuntu, VXWORKS, QNX
| J1900 | J6412 | 4205U | i3-8145U | i5-7200U | ||||||
| Quad Core 2.0GHz | Quad Core 2.0GHz | Dual Core 1.8GHz | Dual Core 2.1GHz | Dual Core 2.5GHz | ||||||
| 2MB | 1.5MB | 2MB | 4MB | 3MB |
I/O Interface and other:
- LAN: 2x Intel 1000Mbps RJ-45 Ethernet interface
- Audio: Optional
- USB: 4x USB 3.0
- COM: 2x RS-232 / RS-485 interface
- Expansion slot: 1x Mini-PCIe slot, extensible 3G, WIFI wireless card, 1x EasyBUS slot

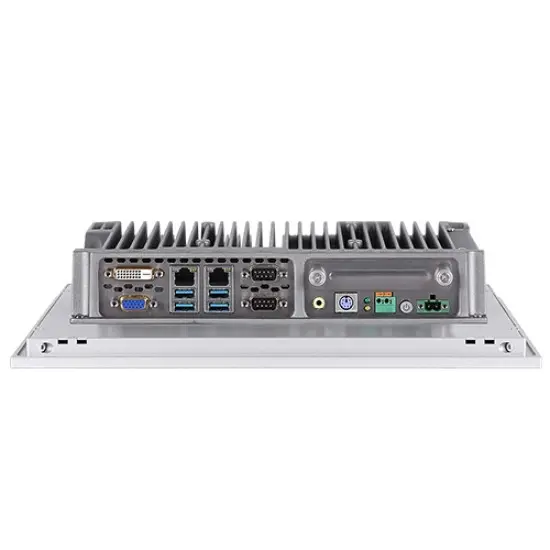

- Rear I/O: DVI-I / 2x GLAN / 4x USB / 2x COM / 2x PS2 / Line-out / Mic-in
Power:
- Power input: 12-24VDC ±10%, support reverse polarity protection, overvoltage protection, overcurrent protection
- Max. power consumpt: 35Watt

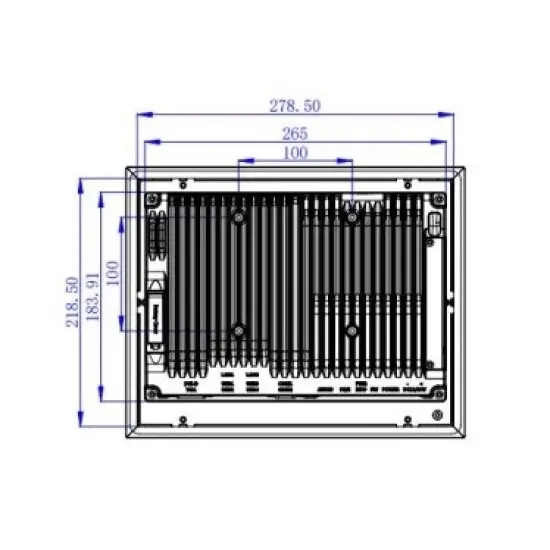

Mechanical:

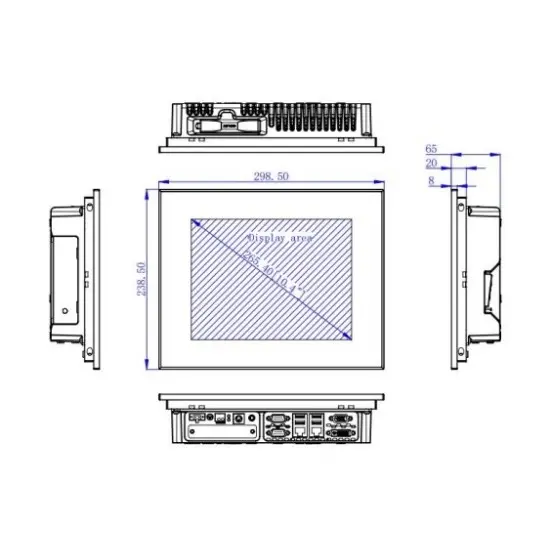

- Dimensions (W x H x D): 298.5mm x 238.5mm x 65mm

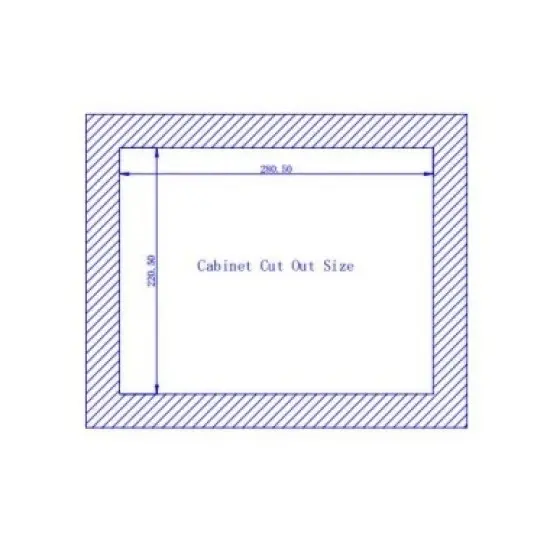

- Cut out size: 280.5mm x 220.5mm
- Weight: 3.46kg
Environmental:
- Work temperature: -20~60°C (-4~140°F)
- Storage Temperature: -30~80°C (-22~176°F)
- Relative Humidity: 5~95% RH@40°C, non-condensing
- Vibration: Operating Random Vibration Test 5~500Hz, 1.5Grms@with SSD, follow IEC 60068-2-64
- Shock: Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27
- EMC: CE/FCC Class B
- Front Panel Protection: IP65 compliant
Manufacturer's warranty: 2 years
