  • Stock: 2-3 weeks
  • Brand: ICPDAS
  • Model: I-87005W CR
1 474,70 zł

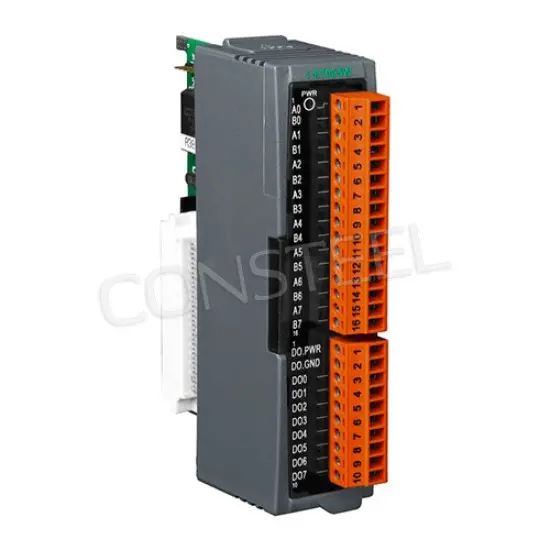

8-channel Thermistor Input and 8-channel Digital Output Module.

The I-87005W module is used for measuring temperature using a thermistor. The module supports a wide range of thermistors, and features individual channel configuration, which means that eight of the input channels can be individually configured for different kinds of thermistor.

In addition, the I-87005W also provides 8 digital output channels that can be used for alarm output, and supports user-defined thermistor types, which can be added by specifying the Steinhart coefficients, if necessary. The inclusion of 3000 VDC intra-module isolation and overvoltage protection for the thermistors on the I-87005W ensures that the module operates at a higher reliability.

Features:

  • Thermistor Input
  • Individual Channel Configuration
  • Open Wire Detection
  • 8-channel Digital Outputs for Alarm Output
  • 3000 VDC Intra-module Isolation
  • Overvoltage Protection for Thermistor Input
  • User-defi ned Thermistor Types
  • Wide Operating Temperature Range: -25 ~ +75°C

Warranty: 12 months

Certifications: CE, FCC Class A
