  • Stock: 2-3 weeks
  • Brand: ICPDAS
  • Model: M-7024UD CR
1 445,98 zł

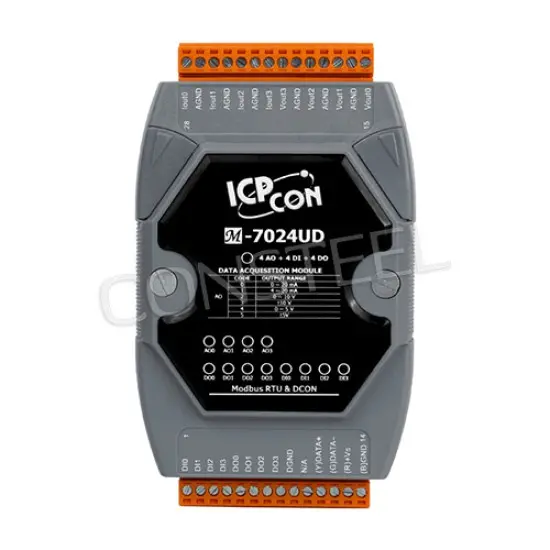

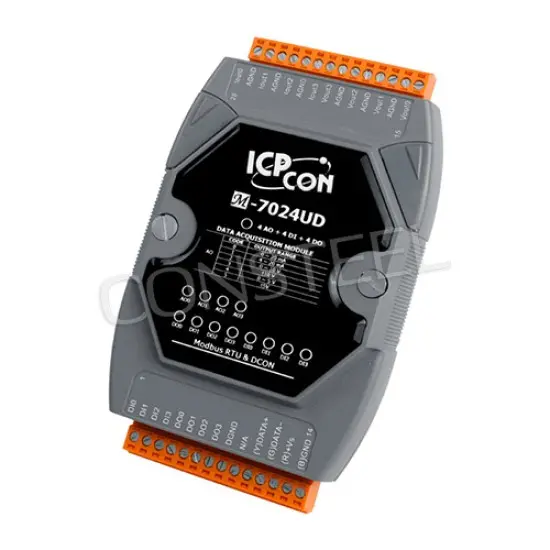

4-channel Analog Output, 4-channel Digital Input and 4-channel Digital Output Module using the DCON and Modbus Protocols with LED Display.

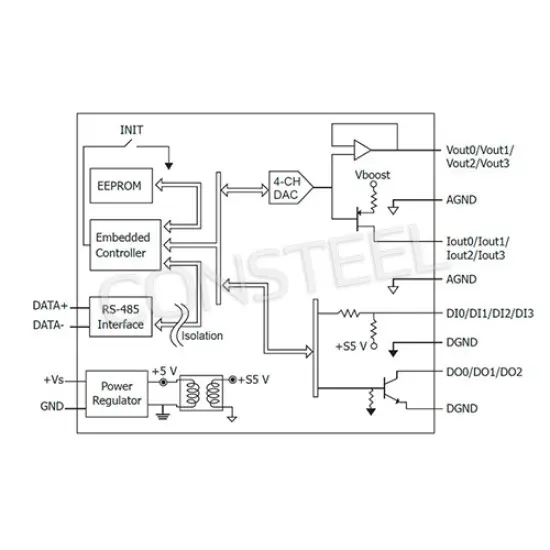

The M-7024U is a multi-function module that includes 4 analog output channels, 4 digital input channels, 4 digital output channels. It provides a programmable output range on all analog outputs channels (0 ~ 5 V, +/-5 V, 0 ~ 10 V, +/-10 V, +4 ~ +20 mA or 0 ~ +20 mA). Each analog output channel can be configured for an individual range and the module also features per-channel open wire detection for +4 ~ +20 mA outputs, together with 8 kV ESD Protection as well as 2500 VDC intra-module isolation. Options for confi guring power-on and safe values are also included.

Features:

  • Multifunction = 4 AO + 4 DI + 4 DO
  • Source Type Current Output
  • 16-bit Analog Output
  • Individual Channel Configuration
  • Open Wire Detection for Current Output
  • 8 kV ESD Protection
  • Power-on Value Setting
  • Safe Value Setting
  • Wide Operating Temperature Range: -25 ~ +75°C
  • DIN rail mount

General technical parameters

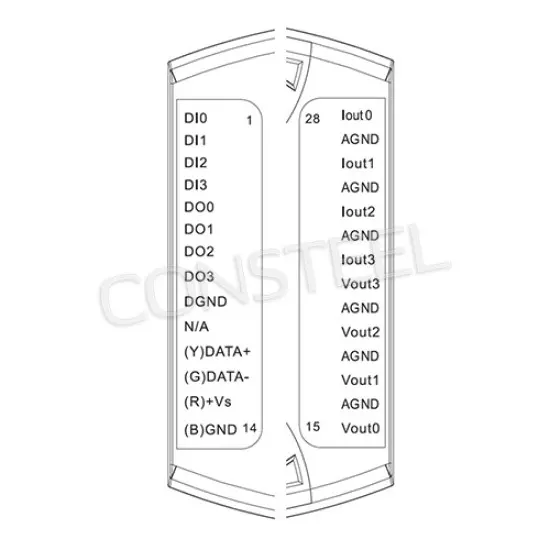

I/O 4x analog outputs, 4x digital inputs, 4x digital outputs
Protocol support DCON, Modbus RTU
Industrial grade
Optoisolation 2500VDC
Operating temperature -25°C to 75°C
Input voltage 10~30VDC
Mount DIN rail, Wall mount
