070-M28 industrial 7″ panel-mount monitor with IP65 front, HDMI/VGA/DP

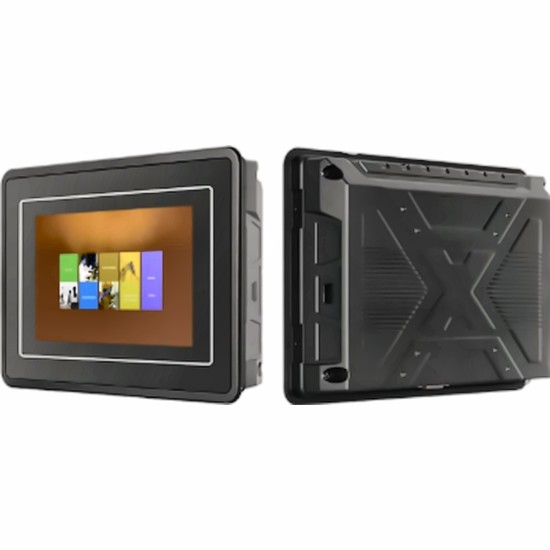

070-M28 – industrial 7″ panel-mount monitor with projected capacitive touchscreen and IP65 front

The 070-M28 is a compact 7-inch industrial panel-mount monitor equipped exclusively with a projected capacitive (PCAP) touchscreen, designed for integration into control cabinets, operator panels, machines and HMI systems. The aluminium housing with a 3 mm ultra-thin bezel, fanless design and fully enclosed construction ensure high durability in harsh industrial environments.

The flat, sealed front with IP65 protection provides reliable resistance to dust, moisture and frequent cleaning procedures, making the monitor suitable for demanding manufacturing, automation and industrial control applications.

Key features of the 070-M28 monitor

At the core of the monitor is an industrial-grade display controller designed for stable 24/7 continuous operation. The integrated 7″ TFT LCD panel features a resolution of 1024×600 (16:9), a brightness level of 500 cd/m² and a contrast ratio of 500:1, ensuring clear and consistent image quality even in brightly lit environments.

Wide viewing angles of 75/75/70/75° (L/R/U/D) allow comfortable operation from different positions, while the PCAP touchscreen enables precise, intuitive multi-touch control, including operation with industrial gloves.

• 7″ TFT LCD display, 1024×600 resolution (16:9), 500 cd/m² brightness.
• Projected capacitive PCAP touchscreen with multi-touch support.
• IP65-rated front panel for protection against dust and water spray.

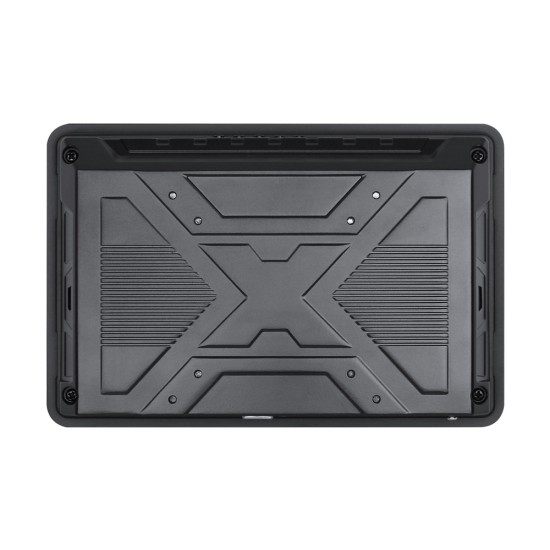

• Fully enclosed aluminium housing with fanless cooling.
• Reliable 24/7 operation in industrial environments.
• Operating temperature range from -10°C to +60°C (optional -20…+70°C).

Video inputs and touchscreen interface – HDMI, VGA, DP

The 070-M28 offers a versatile set of video interfaces for easy integration with industrial PCs, PLCs and embedded control systems. The monitor supports HDMI, VGA and DisplayPort (DP) inputs, ensuring compatibility with both modern and legacy automation hardware.

The projected capacitive touchscreen communicates via a standard USB interface, implemented using an included RJ45-to-USB cable, allowing straightforward connection to the host system.

• 1× HDMI – digital video input.
• 1× VGA – analog video interface.
• 1× DisplayPort (DP) – digital video input.
• 1× USB (RJ45–USB) – PCAP touchscreen interface.
• 1× Phoenix 2-pin (optional DC 5.5×2.1) power connector.

Power supply and industrial reliability

The 070-M28 is powered by a wide-range 12–36 V DC input, making it easy to integrate into industrial control cabinets and automation systems. A 24 V / 1.5 A power adapter is included as standard.

The monitor is designed for demanding operating conditions, supporting up to 95% relative humidity (non-condensing) and a storage temperature range of -20°C to +70°C. These characteristics make the 070-M28 a reliable choice for machine automation, food processing, building automation and transportation systems.

If you need assistance selecting or integrating the 070-M28 monitor into your HMI or automation project, our technical team will be glad to assist you. Contact us »
