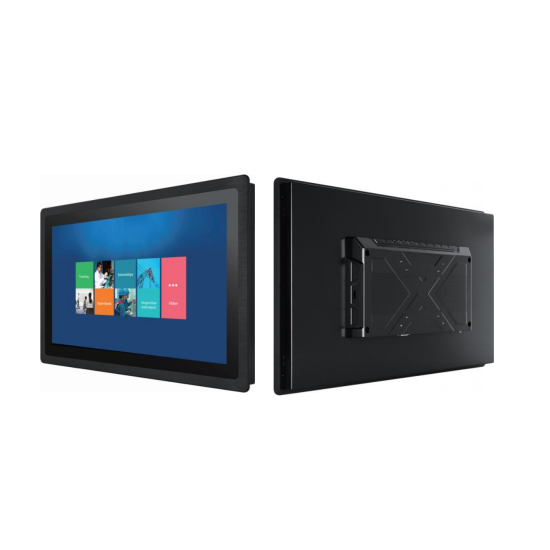

185-M28 industrial 18.5″ panel-installation monitor with IP65 front, HDMI/VGA/DP

185-M28 – industrial 18.5″ monitor for panel installation with IP65 front protection and HDMI/VGA/DP interfaces.

The 185-M28 is an industrial-grade 18.5-inch monitor designed for professional panel installation in automation, machine control, HMI terminals and industrial operator stations. Its aluminum alloy enclosure, 3 mm ultra-thin bezel and fully enclosed fanless structure ensure high resistance to dust, oil, vibration and electromagnetic interference. The industrial controller board ensures reliable and stable 24/7 operation in harsh factory environments.

18.5″ TFT LCD panel – 1920×1080 Full HD, 270 cd/m² brightness and wide 89/89/89/89° viewing angles

The monitor features an 18.5″ TFT LCD display with 1920×1080 (Full HD) resolution, 270 cd/m² brightness and a 1000:1 contrast ratio. With exceptionally wide 89/89/89/89° viewing angles, the display provides excellent readability from any operator position, which is crucial in industrial consoles, SCADA systems and HMI environments.

• 18.5″ TFT LCD with Full HD 1920×1080 resolution.
• Brightness 270 cd/m² and 1000:1 contrast ratio.
• Ultra-wide viewing angles: 89/89/89/89°.
• Flat sealed IP65 front surface.
• Fanless industrial design for continuous 24/7 operation.

Interfaces – HDMI, VGA, DP, Audio I/O, RJ45 (USB-defined) and Phoenix 2-pin power connector

The 185-M28 provides a full set of industrial interfaces including HDMI, DisplayPort (DP), VGA, Audio I/O, and a touchscreen communication interface via RJ45 (USB-defined) with an included RJ45–USB cable. Power is supplied through a Phoenix 2-pin terminal, complemented by a GND grounding point to ensure stable operation in electrically noisy environments.

• 1× HDMI – digital video input.
• 1× DP – DisplayPort digital interface.
• 1× VGA – analog video input.
• 1× Audio I/O – audio input/output.
• 1× RJ45 (USB-defined) – touchscreen interface, cable included.
• 1× Phoenix 2-pin – optional DC 5.5×2.1 threaded connector.
• 1× GND – grounding terminal.

Power supply and environmental conditions

The monitor supports a wide 12–36 V DC power input range and is supplied with a 24 V / 1.5 A power adapter. Operating temperature ranges from -10°C to +60°C, while storage temperature extends from -20°C to +70°C. The unit can operate in environments with up to 95% non-condensing humidity, making it suitable for demanding industrial settings.

Touchscreen versions and mounting options – 185-M28 series

The 185-M28 series includes three variants: 185-M2800 (non-touch), 185-M2810 (10-point projected capacitive touch), 185-M2820 (resistive single-touch). Light transmittance values are ≥92% (non-touch), ≥88% (PCAP), and ≥78% (resistive).

The physical dimensions of the device are W486.5 × H307.4 × D58 mm, with a required panel cutout size of W469.7 × H290.6 mm. The monitor supports multiple mounting methods including panel installation, recessed wall installation, wall-mounting, desktop mounting, folding-arm systems, VESA mounting and suspended installation structures.

If you need assistance selecting the appropriate 185-M28 configuration for your HMI or automation project, our technical support team is ready to help. Contact us »
