190-M28 industrial 19″ panel-installation monitor with IP65 front, HDMI/VGA/DP

190-M28 – industrial 19″ monitor for panel installation with IP65 front protection and HDMI/VGA/DP interfaces.

The 190-M28 is a 19-inch industrial monitor designed for professional panel installation in HMI systems, machine control, industrial automation and operator panels. Its aluminum alloy enclosure with an ultra-thin 3 mm bezel ensures robust construction, while the fully enclosed fanless design provides high resistance to dust, oil, vibration and EMI interference. Built around an industrial-grade controller board, the monitor is engineered for reliable 24/7 operation in demanding industrial environments.

19″ TFT LCD display – 1280×1024, 250–300 cd/m² brightness, 1000:1 contrast and wide viewing angles

The 190-M28 features a 19-inch TFT LCD panel with a 1280×1024 (5:4) resolution. The display provides 250–300 cd/m² brightness and a 1000:1 contrast ratio. Wide viewing angles of 85/85/80/80° ensure excellent visibility from different positions, which is essential for operator workstations, SCADA interfaces and industrial visualization screens.

• 19″ TFT LCD display, 1280×1024 resolution.
• Brightness 250–300 cd/m², contrast ratio 1000:1.
• Wide viewing angles: 85/85/80/80°.
• Flat sealed IP65 front panel.
• Fanless industrial construction designed for 24/7 operation.

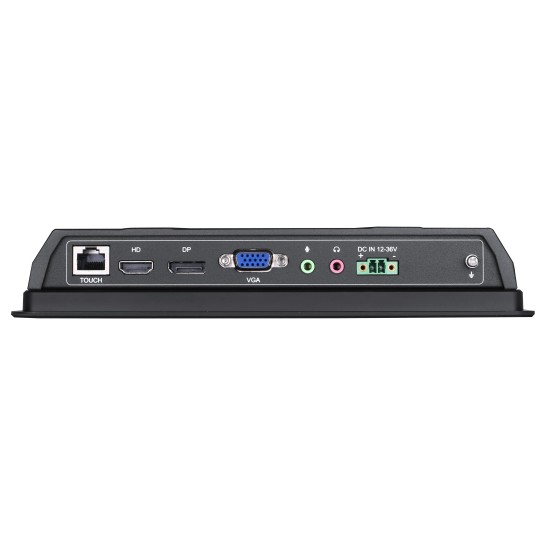

Interfaces – HDMI, VGA, DP, Audio I/O, RJ45 (USB-defined) and Phoenix 2-pin power connector

The monitor provides a complete set of industrial interfaces including HDMI, DisplayPort (DP), VGA, Audio I/O, and an RJ45 (USB-defined) interface used for touchscreen communication (RJ45–USB cable included). Power is supplied via a Phoenix 2-pin terminal with an additional GND grounding point for stable operation in industrial electrical environments.

• 1× HDMI – digital video input up to 1080p.
• 1× DP – digital DisplayPort interface.
• 1× VGA – analog video input.
• 1× Audio I/O – audio input/output.
• 1× RJ45 (USB-defined) – touchscreen interface, cable included.
• 1× Phoenix 2-pin – optional threaded DC 5.5×2.1 connector.
• 1× GND – grounding terminal.

Power supply and environmental performance

The 190-M28 supports a wide 12–36 V DC input voltage range and comes with a 24 V / 1.5 A power adapter included. Operating temperatures range from -10°C to +60°C, with a storage range of -20°C to +70°C. The monitor can operate in environments with up to 95% non-condensing humidity, making it suitable for demanding industrial applications.

Touchscreen versions and mounting options – 190-M28 series

The 190-M28 series is available in three variants: 190-M2800 (non-touch), 190-M2810 (10-point projected capacitive touch), 190-M2820 (resistive single-touch). Light transmittance levels are ≥92% (non-touch), ≥88% (PCAP), and ≥78% (resistive).

The external dimensions of the monitor are W451 × H380 × D55 mm, while the panel cutout size is W434.2 × H363.2 mm. Supported mounting methods include: panel installation, recessed wall installation, wall mounting, desktop use, folding-arm systems, VESA mounting and suspended installation structures.

If you need assistance selecting the right 190-M28 configuration for your automation or HMI project, our technical team is ready to support you. Contact us »
