191-M28 industrial 19.1″ panel-installation monitor with IP65 front, HDMI/VGA/DP

191-M28 – industrial 19.1″ monitor for panel installation with IP65 front protection and HDMI/VGA/DP interfaces.

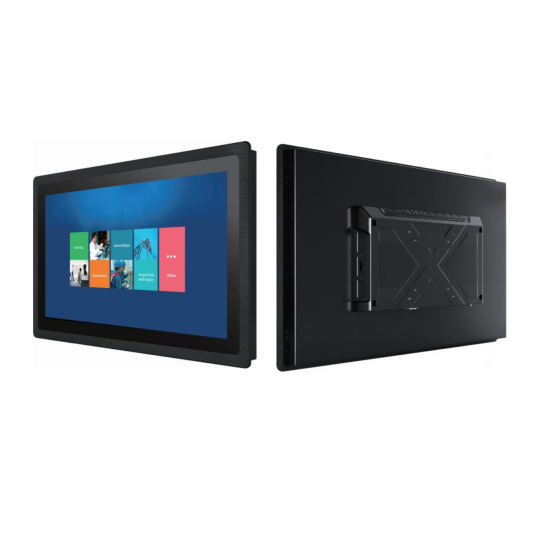

The 191-M28 is a 19.1-inch industrial panel-installation monitor designed for demanding HMI, machine-control and automation environments. According to the product datasheet, it features a durable aluminum alloy enclosure with an ultra-thin 3 mm bezel, allowing easy integration into control panels and machinery. Its fully enclosed fanless design ensures high resistance to oil, dust, vibration, temperature fluctuations and EMI interference, making it suitable for continuous 24/7 operation.

19.1″ TFT LCD display – 1440×900 (16:10), 250–300 cd/m² brightness and wide 80/80/80/80° viewing angles

The monitor is equipped with a 19.1-inch TFT LCD panel offering a 1440×900 resolution and a 16:10 aspect ratio. Brightness ranges from 250 to 300 cd/m², with a 1000:1 contrast ratio. Wide viewing angles of 80/80/80/80° (left/right/up/down) ensure excellent visibility in industrial operator environments, SCADA workstations and HMI dashboards.

• 19.1″ TFT LCD, 1440×900 resolution (16:10).
• Brightness 250–300 cd/m², contrast ratio 1000:1.
• Wide viewing angles: 80/80/80/80°.
• Flat sealed IP65 front panel.
• Fanless industrial-grade design for 24/7 operation.

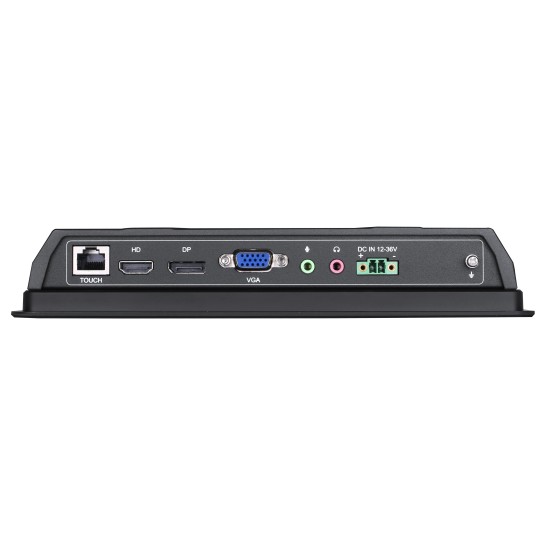

Interfaces – HDMI, VGA, DP, Audio I/O, RJ45 (USB-defined) and Phoenix 2-pin power connector

The 191-M28 provides a complete set of industrial interfaces including HDMI, DisplayPort (DP), VGA, Audio I/O, and a touchscreen interface via RJ45 (USB-defined) with an included RJ45–USB cable. Power is supplied through a Phoenix 2-pin connector with an additional GND grounding terminal for improved electrical stability.

• 1× HDMI – digital video input up to 1080p.
• 1× DP – DisplayPort digital interface.
• 1× VGA – analog video input.
• 1× Audio I/O – audio input/output.
• 1× RJ45 (USB-defined) – touchscreen interface, cable included.
• 1× Phoenix 2-pin – optional threaded DC 5.5×2.1 connector.
• 1× GND – grounding terminal.

Power supply and environmental performance

The device supports a wide 12–36 V DC input voltage range and comes with a 24 V / 1.5 A power adapter. Operating temperature spans from -10°C to +60°C, with a storage temperature range of -20°C to +70°C. The monitor is capable of operating in environments with up to 95% non-condensing humidity, making it suitable for harsh industrial applications.

Touchscreen versions and mounting options – 191-M28 series

The 191-M28 series includes three models: 191-M2800 (non-touch), 191-M2810 (projected capacitive PCAP, 10-point), 191-M2820 (resistive single-touch). Light transmittance values are ≥92% (non-touch), ≥88% (PCAP) and ≥78% (resistive).

The external dimensions of the device are W486 × H332 × D56 mm, while the panel cutout size is W469.2 × H315.2 mm. Supported mounting methods include: panel installation, wall-embedded installation, wall mounting, desktop mounting, folding-arm systems, VESA mounting and suspended installation setups.

If you need support choosing the correct 191-M28 version for your HMI or automation system, our technical experts are ready to assist you. Contact us »
