215-M28 industrial 21.5″ panel-installation monitor with IP65 front, HDMI/VGA/DP

215-M28 – industrial 21.5″ monitor for panel installation with IP65 front protection and HDMI/VGA/DP interfaces.

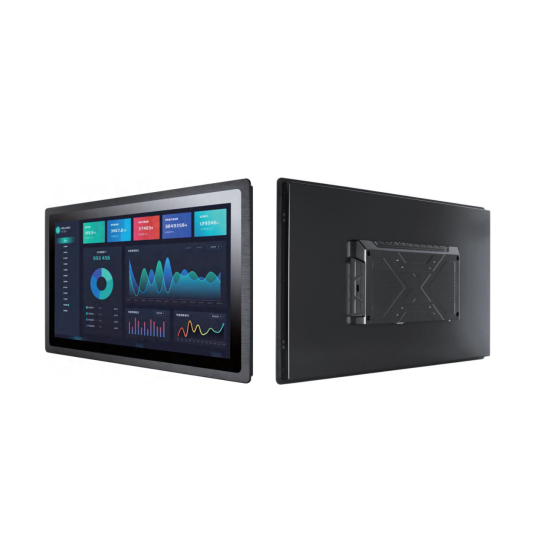

The 215-M28 is a 21.5-inch industrial monitor designed for professional panel installation in machine control systems, HMI terminals and industrial operator workstations. The enclosure is built from aluminum alloy with an ultra-thin 3 mm bezel, enabling seamless integration into equipment and control panels. Its fully enclosed fanless architecture and industrial-grade controller board provide high resistance to dust, oil, vibration, temperature fluctuations and EMI, ensuring reliable 24/7 operation in demanding environments.

21.5″ TFT LCD – Full HD 1920×1080, 250–300 cd/m² brightness and wide 89/89/89/89° viewing angles

The device features a 21.5-inch TFT LCD panel with a 1920×1080 (Full HD) resolution. Brightness is rated at 250–300 cd/m², and the contrast ratio is 1000:1. With wide 89/89/89/89° viewing angles, the display ensures excellent readability in HMI systems and complex industrial control environments.

• 21.5″ TFT LCD, Full HD 1920×1080 resolution.
• Brightness 250–300 cd/m², 1000:1 contrast ratio.
• Wide viewing angles: 89/89/89/89°.
• Flat sealed IP65 front panel.
• Fanless industrial structure for 24/7 continuous operation.

Interfaces – HDMI, VGA, DP, Audio I/O, RJ45 (USB-defined) and Phoenix 2-pin power connector

The 215-M28 provides a complete selection of industrial-standard connections, including HDMI, DisplayPort (DP), VGA, Audio I/O, and a touchscreen communication interface via RJ45 (USB-defined) with an included RJ45–USB cable. Power input is delivered through a Phoenix 2-pin terminal, accompanied by a GND grounding point for enhanced electrical stability.

• 1× HDMI – digital input up to 1080p.
• 1× DP – DisplayPort digital interface.
• 1× VGA – analog video input.
• 1× Audio I/O – audio input/output.
• 1× RJ45 (USB-defined) – touchscreen communication, cable included.
• 1× Phoenix 2-pin – supports threaded DC 5.5×2.1 adapter.
• 1× GND – grounding terminal.

Power supply and environmental durability

The monitor supports a wide 12–36 V DC power input range and is supplied with a 24 V / 1.5 A power adapter. Operating temperature ranges from -10°C to +60°C, while storage temperature ranges from -20°C to +70°C. The unit can operate at up to 95% non-condensing humidity, making it suitable for harsh industrial environments.

Touchscreen versions and mounting options – 215-M28 series

The 215-M28 series includes three variants: 215-M2800 (non-touch), 215-M2810 (projected capacitive PCAP, 10-point), 215-M2820 (resistive single-touch). Light transmittance values are ≥92% (non-touch), ≥88% (PCAP) and ≥78% (resistive).

External dimensions of the monitor are W557 × H345 × D53 mm, with a panel cutout size of W540.2 × H328.2 mm. Supported mounting methods include: panel installation, wall-embedded installation, wall mounting, desktop mounting, folding-arm mounting, VESA mounting and suspended installation systems.

If you need support selecting the correct 215-M28 model for your HMI, SCADA or automation project, our technical team is ready to assist you. Contact us »
