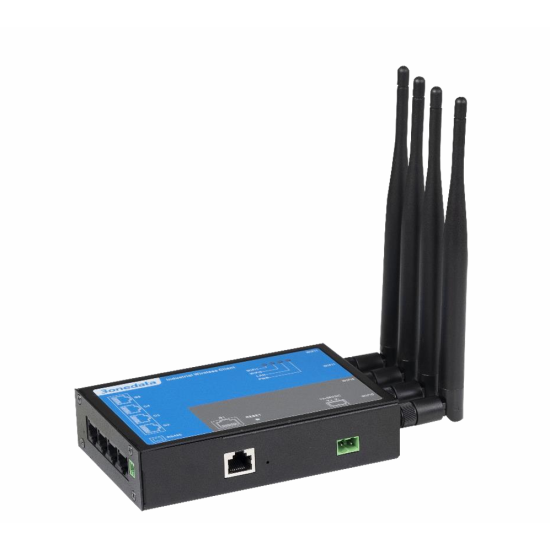

IAP2200PRO-2525-5GT-1D – Industrial WiFi 5 Dual 5 GHz Client with 5×Gigabit Ethernet and RS-485

IAP2200PRO-2525-5GT-1D is an industrial-grade WiFi 5 (IEEE 802.11ac) wireless client, designed for applications requiring stable high-speed wireless connectivity and reliable conversion of WiFi communication into wired Ethernet networks. The device operates on dual 5 GHz radios and delivers a combined wireless throughput of up to 1734 Mbps (2 × 867 Mbps).

The device is equipped with a 4-antenna 5 GHz RF interface (RP-SMA), 5× Gigabit Ethernet RJ45 ports (10/100/1000Base-T(X)), and 1× RS-485 serial port, enabling seamless integration of Ethernet-based devices and industrial serial equipment within wireless infrastructures. This makes the unit ideal for connecting machines, controllers and industrial subsystems to IP networks.

IAP2200PRO-2525-5GT-1D operates in client mode, establishing a wireless link to access points and converting the wireless signal into wired Ethernet connectivity. Support for seamless roaming ensures uninterrupted communication in mobile environments such as automated warehouses, transport systems and production facilities.

In terms of security, the device supports WPA / WPA2 authentication and TKIP / AES encryption algorithms. Additionally, WMM (Wi-Fi Multimedia) support allows traffic prioritization, ensuring reliable performance for latency-sensitive applications such as video streaming and real-time industrial communication.

The hardware is based on a fanless, low-power industrial design, suitable for continuous operation in harsh environments. The device supports an operating temperature range of -20…55°C, is powered by 9–48 VDC via a terminal block, and features a rugged IP30-rated metal housing. Installation is supported via DIN-rail or wall mounting.

Key Features of IAP2200PRO-2525-5GT-1D

• Industrial WiFi 5 client (IEEE 802.11ac)
• Dual 5 GHz radios, total throughput up to 1734 Mbps
• 4× 5 GHz RP-SMA antenna connectors
• 5× Gigabit Ethernet RJ45 ports (10/100/1000Base-T(X))
• 1× RS-485 serial interface
• Operating mode: client (WiFi-to-Ethernet conversion)
• Seamless roaming between access points
• Security: WPA/WPA2, TKIP/AES, WMM support
• Power supply: 9–48 VDC (terminal block)
• Operating temperature range: −20…55°C
• DIN-rail or wall mounting, IP30 metal housing
• Certifications: CE, FCC, RoHS, 5-year warranty

Typical Applications

• Wireless integration of industrial machines and controllers
• Automated warehouses and logistics systems
• Production lines and manufacturing facilities
• Industrial transportation and mobile systems
• Monitoring and data transmission applications
• Environments requiring stable 5 GHz wireless communication

IAP2200PRO-2525-5GT-1D is a reliable industrial WiFi client that enables secure and stable integration of wireless networks with Ethernet infrastructure and industrial automation systems.
