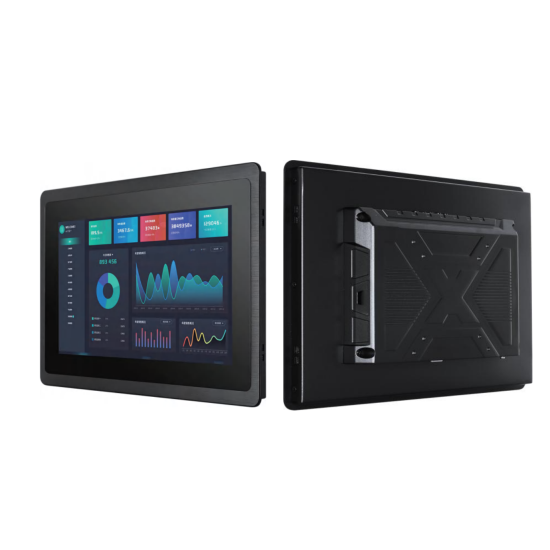

116-M28 industrial 11.6″ panel-mount monitor with IP65 front, HDMI/VGA/DP

116-M28 – industrial 11.6″ panel-mount monitor with IP65 front protection and HDMI/VGA/DP interfaces.

The 116-M28 is an 11.6-inch industrial panel-mount monitor engineered for modern HMI, machine control, and visualization applications. Its aluminum alloy construction, ultra-thin 3 mm bezel, fanless sealed enclosure, and strong resistance to dust, oil, vibration, and electromagnetic interference make it a reliable choice for demanding industrial environments. The flat front panel with IP65 protection ensures stable operation even under harsh conditions.

Full HD display for detailed industrial interfaces

The monitor features an 11.6″ TFT LCD display with a crisp 1920×1080 (Full HD, 16:9) resolution, 250–300 cd/m² brightness, and a 1000:1 contrast ratio. Its wide viewing angles of 85/85/85/85° guarantee excellent visibility from all directions, making it suitable for dashboards, SCADA interfaces, high-density visual layouts, and detailed control screens.

• 11.6″ TFT LCD display, 1920×1080 Full HD (16:9).
• Brightness 250–300 cd/m² and 1000:1 contrast ratio.
• Wide viewing angles 85/85/85/85° (L/R/U/D).
• Flat IP65 protected front panel.
• Designed for stable 24/7 industrial operation.

Connectivity and interfaces – HDMI, VGA, DP, Audio, RJ45 touch

The 116-M28 supports multiple video interfaces for compatibility with industrial PCs, embedded controllers, and PLC systems. Available inputs include HDMI, VGA, and DisplayPort (DP). Touchscreen versions feature an RJ45 (USB-defined) port and are supplied with an RJ45-to-USB touch cable. Additional interfaces include Audio I/O and a 2-pin Phoenix terminal for power input.

• 1× HDMI – supports Full HD input up to 1080p.
• 1× DP – digital DisplayPort input.
• 1× VGA – analog video input.
• 1× Audio I/O – audio input and output.
• 1× RJ45 (USB) – touch interface (RJ45-to-USB cable included).
• 1× Phoenix 2-pin – optional threaded DC 5.5×2.1 connector.
• 1× GND – grounding point.

Power supply and resistance to harsh industrial environments

The monitor operates from a wide 12–36 V DC power range and includes a 24 V / 1.5 A power adapter. With an operating temperature range of -10°C to +60°C (optional -20°C…+70°C) and tolerance for up to 95% non-condensing humidity, the 116-M28 is well-suited for heavy industrial settings, automation cabinets, production lines, and environmentally challenging installations.

Touchscreen variants and mounting flexibility – 116-M28 series

The 116-M28 series is available in three variants: 116-M2800 (non-touch), 116-M2810 (10-point projected capacitive touch), and 116-M2820 (resistive single-touch). Light transmittance values are: ≥92% (non-touch), ≥88% (PCAP), and ≥78% (resistive). The monitor’s compact dimensions W323.7 × H218.5 × D46 mm support various installation methods, including panel-mount, wall-mount, desktop mounting, articulated arm mounting, and VESA-compatible setups.

If you need guidance selecting the right 116-M28 variant for your HMI or industrial automation system, our technical team is ready to assist you. Contact us »
