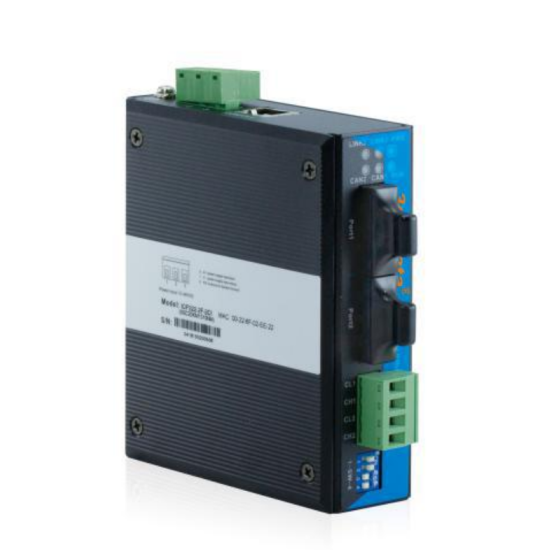

ICP222-1T2F-2CI-TB

Industrial 2-port CAN-Bus to 2-port 100Base-FX Ethernet CAN Device Server.

ICP222-2F-2CI is an industrial grade CAN-Bus server which supports 2 CAN-Bus ports and 2 Fast Ethernet fiber ports. The optic fiber support SW-Ring ring network patent technology. The user can easily complete the interconnection of CAN-Bus network and Ethernet network, to further expand the scope of CAN-Bus network.

The CAN-Bus port communication rate 5K~1000Kbps has three operating modes of the TCP Server, TCP Client and UDP, support the most three connection, support across gateway, router communication, is convenient for user to visit the IP address or domain name and other functions. The host through the network centralized management, simple and convenient. It can be widely used in PLC control and management, building automation, healthcare automation system, the measurement instrument and dynamic environment monitoring system.

Features:

• Support IEEE802.3, IEEE802.3u, IEEE802.3x
• Support 2 100Base-FX fiber ports
• SW-Ring ring network patent technology (Fault recovery time<20ms)
• Support 2 CAN-Bus ports, 2KVAC isolation protection
• Support TCP Server, TCP Client and UDP working mode
• Support ARP, ICMP, UDP, TCP, IP, HTTP, DHCP, SW-Ring and DNS protocol
• Support CAN-Bus baud rate 5K~1000Kbps
• Support WEB and CLI configuration
• Support configuration file up and download
• Support across gateway, router communication
• Support static and dynamic IP access
• Support the heartbeat time and disconnect timeout function
• Support the automatic recovery function in the network connection is disconnected
• Support DC power supply (12~48VDC)
• Industrial grade 4 design, -40~75°C operating temperature
• IP40 protection grade, DIN-Rail mounting

Specification:

Ethernet:

• Standard: 100Base-TX
• Optic fiber port number: 2
• Speed: 100M
• Protocol: ARP, ICMP, UDP, TCP, IP, HTTP, DHCP, DNS
• Working mode: TCP Server, TCP Client, UDP
• Transfer distance: support single mode (20/40/60/80Km optional), multi mode (2Km), wavelength: 1310nm, 1550nm
• Connector: SC/ST/FC
• SW-Ring: Support Single, Couple, Chain, Dual homing

Console port:

• RS-232 (RJ45 connector)

CAN-Bus

• Standard: CAN2.0A, CAN2.0B
• CAN-Bus port number: 2
• CAN-Bus signal: CAN-L, CAN-H
• Band rate: 5K~1Mbps
• Working mode: 2 wires, half duplex
• Transfer distance: 40m~10km
• Load capacity: support 110 concurrent

Transfer distance

• Twisted cable: 100M (standard CAT5/CAT5e cable)
• Multi-mode: 1310nm, 2Km
• Single-mode:
• 1310nm, 20/40/60Km
• 1550nm, 80/100/120Km

LED indicator

• Run indicator: RUN
• Power supply indicator: PWR
• CAN-Bus port indicator: CAN (1~2)
• Interface indicator: LINK (1~2)

Power supply:

• Input Voltage: 12~48VDC
• Type of input: 3 bits terminal block

Consumption

• No-load consumption: 2.88W@12VDC
• Full-load consumption: 3.07W@12VDC

Environmental:

• Working temperature:-40°C to 75°C
• Storage temperature:-40°C to 85°C
• Relative Humidity: 5% to 95% (no condensation)

Mechanical Structure

• Shell: IP40 protect grade, metal shell
• Dimensions (WxHxD): 35mm x 110mm x 95mm
• Installation: DIN-Rail mounting
• Weight: 374g

Standards:

• EMI: FCC Part 15, CISPR (EN55022) class A
• EMS:
• EN 61000-4-2 (ESD) Level 3
• EN 61000-4-4 (EFT), Level 4
• EN 61000-4-5 (Surge), Level 3
• Shock: IEC 60068-2-27
• Free fall: IEC 60068-2-32
• Vibration: IEC 60068-2-6

Warranty: 5 years

Certificates: CE, FCC, RoHS, UL508 (Pending)

---
