Model3012-C1 – Industrial Gigabit Ethernet Rack Card with 1×RJ45 and 1×Fiber

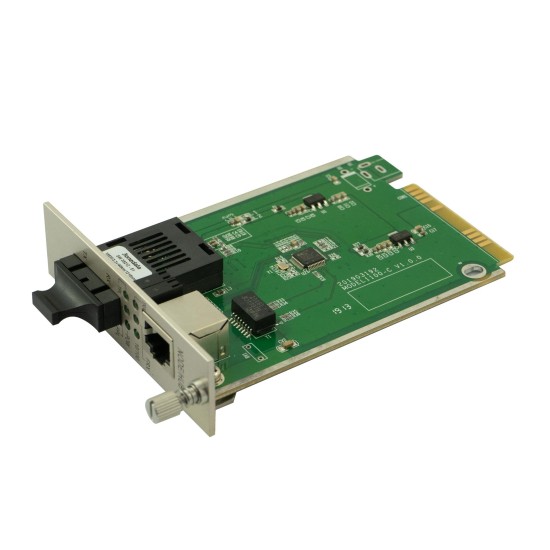

Model3012-C1 is an industrial Gigabit Ethernet slide-in card designed for rack-mounted media converter chassis such as RACK2000B. The card enables reliable conversion between copper Ethernet 10/100/1000Base-T(X) and optical fiber 1000Base-X, extending transmission distance and providing electrical isolation with high immunity to electromagnetic interference.

The module is equipped with 1× Gigabit Ethernet RJ45 port supporting 10/100/1000 Mb/s and 1× Gigabit fiber port available with SC / ST / FC connectors. The copper interface supports auto-negotiation, auto-MDI/MDI-X and full/half-duplex operation, allowing seamless integration into existing network infrastructures.

Model3012-C1 operates using a store-and-forward switching mechanism with forwarding latency of <10 µs. A built-in 1K MAC address table, 12 KB packet buffer and 4 Gbps backplane bandwidth ensure stable and reliable data transmission in industrial networking environments.

The card complies with IEEE 802.3, 802.3u, 802.3ab, 802.3z and 802.3x standards, ensuring full compatibility with Gigabit Ethernet networks. The hardware design is optimized for low power consumption and continuous operation in demanding industrial conditions.

Model3012-C1 is powered by 5 VDC and features a maximum power consumption of 2.35 W. The card is rated for operation within a temperature range of -10…60°C and humidity levels of 5–95% RH (non-condensing), making it suitable for industrial automation, energy, transportation, Smart City and infrastructure applications.

Key Features of Model3012-C1

• 1× Gigabit Ethernet RJ45 (10/100/1000Base-T(X))
• 1× Gigabit Ethernet Fiber (1000Base-X, SC / ST / FC)
• Store-and-forward switching, latency <10 µs
• 1K MAC address table, 12 KB packet buffer
• 4 Gbps backplane bandwidth
• Auto-negotiation, auto-MDI/MDI-X, full/half duplex
• Power supply: 5 VDC, max. consumption 2.35 W
• Operating temperature: -10…60°C
• Slide-in mounting for rack chassis
• Dimensions: 114.7 × 77.4 × 26 mm, weight 0.05 kg
• Certifications: CE, FCC, RoHS

Typical Applications

• Rack-based Gigabit Ethernet media converter systems
• Industrial automation and control networks
• Energy and Smart Grid infrastructure
• Railway and ITS transportation systems
• Smart City and Safe City applications
• Installations requiring fiber-based electrical isolation

Model3012-C1 is a high-performance and reliable Gigabit Ethernet rack card, providing secure copper-to-fiber media conversion for industrial networking environments.
