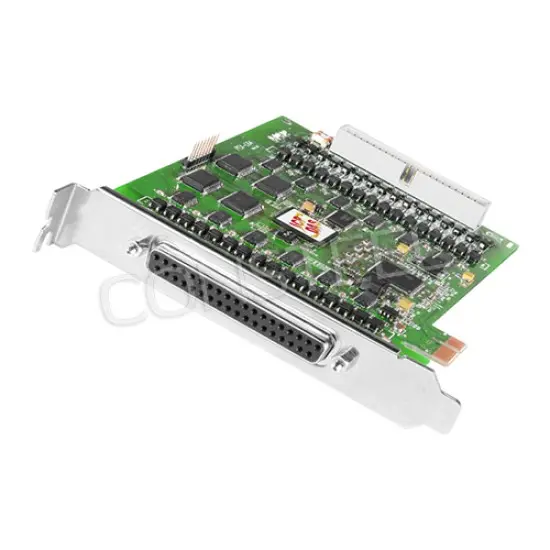

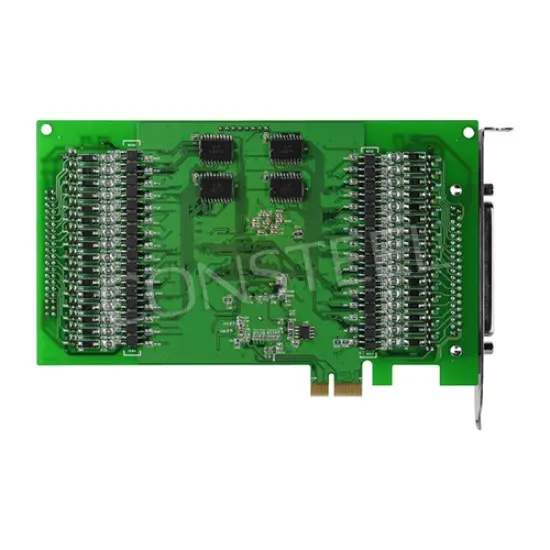

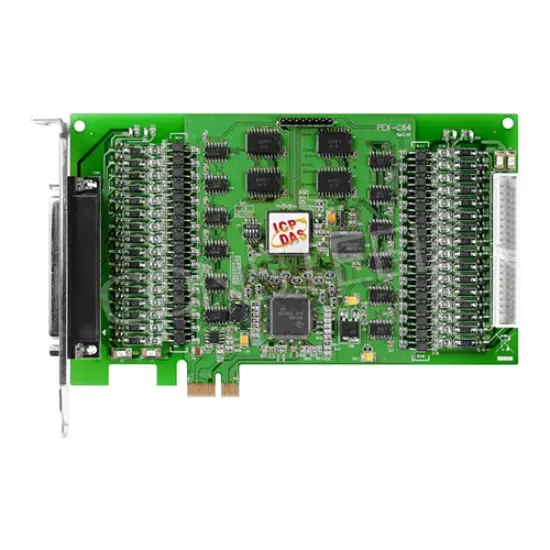

PCI Express card with 64 Optically Isolated Digital Outputs.

The PEX-C64 card provides 64 optically isolated digital output channels, each of which offers a Darlington transistor and an integrated suppression diode for the inductive load. The open collector outputs (DO channels) are typically used for alarm and warning notification, signal output control, control for external circuits that require a higher voltage level, and signal transmission applications, etc.

The PEX-P64/C64 supports PCI Express bus. These DI and DO channels are arranged into four isolated banks when using four isolated external power supplies. The onboard provide 3750 Vrms isolation, and act as an interface to field logic signals, eliminate ground-loop problems, and isolate the host computer from damaging voltages.

These cards also add a Card ID switch on-board. Users can set Card ID and then recognize the board by the ID via software when using two or more PEX-P64/C64 cards in one computer.

Features:
Data Acquisition Board with 64 optically isolated open-collector digital outputs
PCI Express x1, Plug & Play
Supports Card ID (SMD Switch)
3750 Vrms optoisolation protection
Four isolated banks when using four isolated external power supplies
Internal power (3000 VDC Isolation) for dry-contact input
LabVIEW toolkit for Windows
Manufacturer's warranty: 12 months
