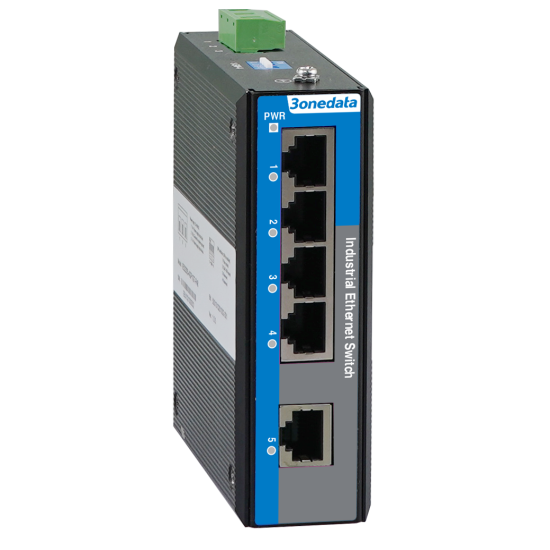

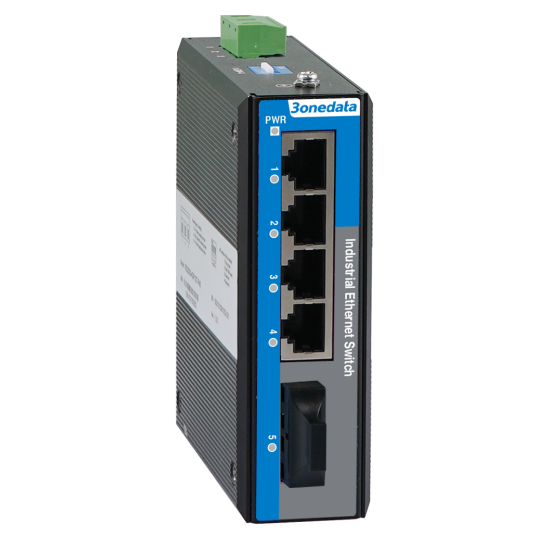

IES2105-4P1T-P48

Unmanaged industrial switch with 1 copper 100M port and 4 100M PoE ports and 48VDC PoE power supply.

IES2105 series are unmanaged industrial PoE/Non-PoE Ethernet switches. This series provide 8 products to choose from and support 100M copper ports, 100M fiber ports and 100M PoE copper ports, as well as multiple power supply schemes, 220VAC, 12~48VDC and 48VDC PoE. They adopt DIN-Rail mounting to meet the requirements of different application scenes.The DIP switch could implement functions like jumbo frame, one-key VLAN and flow control. The hardware adopts fanless, low power consumption and wide temperature and voltage design, which has passed rigorous industrial standard tests, and suits for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.

Features:

• Support 5 optional 100M PoE/Non-PoE fiber/copper ports
• Single PoE port can provide up to 30W output power
• PoE product supports 48VDC POE power supply input
• Non-PoE product supports optional 220VAC/12~48VDC power supply input
• Support -40~75℃ wide operating temperature range

Specification:

Standard & Protocol

• IEEE 802.3 for 10Base-T
• IEEE 802.3u for 100Base-TX and 100BaseFX
• IEEE 802.3x for Flow Control
• IEEE 802.1Q for VLAN
• IEEE 802.3af for PoE
• IEEE 802.3at for PoE+

PoE

• The maximum power of PoE port: 30W
• The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6

Interface

• 100M copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/ MDI-X Autotunning
• 100M fiber port: 100Base-FX, optional SC/ST/FC
• 100M POE copper port: 10/100Base-T(X) RJ45, automatic flowcontrol, full/half duplex mode, MDI/ MDI-X autotunning, POE port, output power of 15W or 30W.

Indicator

• Port Indicator, Power Supply Indicator, PoE Indicator

Switch Property

• MAC address: 2K
• Backplane bandwidth: 1G
• Transmission mode: store and forward
• Switch time delay: <10μs

Power supply

• Optional AC/DC power supply, 12~ 48VDC, 48VDC PoE or 220VAC 3-pin 7.62mm pitch terminal blocks

Power Consumption

• IES2105-5T-P48- No-load consumption 0.48W@24VDC: ≤0.96W, Full-load consumption: 1.2W@24VDC<: ≤1.4W
• IES2105-4P1F-P48- No-load consumption 0.48W@24VDC: ≤2W Full-load consumption: 1.2W@24VDC: ≤110W

Working Environment

• Operating temperature: -40~75℃
• Storage temperature: -40~85℃
• Relative humidity: 5%～95% (no condensation)

Physical Characteristic

• Housing: IP40 protection, metal
• Installation: DIN-Rail mounting
• Dimension (W x H x D): 35mm×110mm×95mm
• Weight: IES2105-5T-P48, IES2105-5T-P220: 356g, IES2105-4P1F-P48, IES2105-4P1F-P220: 384g, IES2105-4T1F-P220: 375g, IES2105-3T2F-P48, IES2105-3T2F-P220: 355g

Industry Standard

• IEC 61000-4-2 (ESD, electrostatic discharge), Level 3: Air discharge:± 8kV, Contact discharge: ±6kV
• IEC 61000-4-4 (EFT, electrical fast transient), Level 3: Power supply: ±2kV, Signal: ±1kV
• IEC61000-4-5 (Surge), Level 3: Power supply: differential mode±1kV, common mode±2kV, Signal: differential mode±1kV, common mode±2kV
• Shock: IEC 60068- 2- 27
• Free fall: IEC 60068- 2- 32
• Vibration: IEC 60068- 2- 6

Certificates: CE, FCC, RoHS

Manufacturer's warranty: 5 years

Ordering Information

IES2105-5T-P48: 100M Copper Port- 5, Power Supply- 12~48VDC

IES2105-4T1F-P48: 100M Copper Port- 4, 100M Fiber Port- 1, Power Supply- 12~48VDC

IES2105-3T2F-P48: 100M Copper Port- 3, 100M Fiber Port- 2,Power Supply- 12~48VDC

IES2105-5T-P220: 100M Copper Port- 5,Power Supply- 220VAC

IES2105-4T1F-P220: 100M Copper Port- 4, 100M Fiber Port- 1,Power Supply- 220VAC

IES2105-3T2F-P220: 100M Copper Port- 3, 100M Fiber Port- 2,Power Supply- 220VAC

IES2105-4P1T-P48: 100M Copper Port- 1, 100M PoE Port- 4, Power Supply- 48VDC PoE

IES2105-4P1F-100M Fiber Port- 1, 100M PoE Port- 4, Power Supply- 48VDC PoE

---
