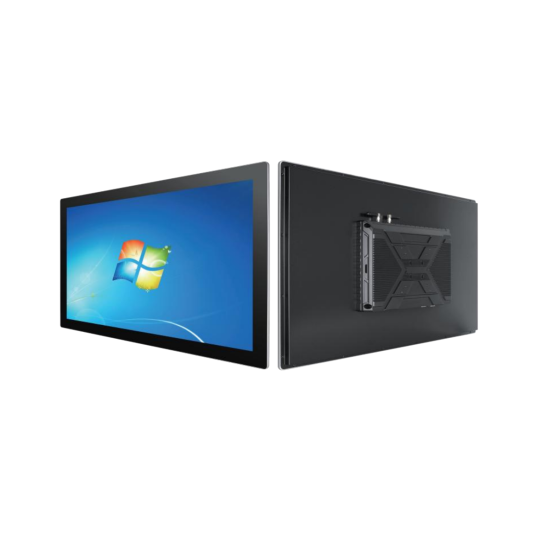

Conpanel Pro 270-W29 industrial panel PC 27” Full HD with Intel Celeron J6412 for 24/7 operation

Conpanel Pro 270-W29 – 27-inch industrial panel PC with J6412 CPU and IP65 front.

Conpanel Pro 270-W29 is a premium-class industrial panel PC engineered for continuous 24/7 operation in demanding industrial environments. The combination of a large 27” Full HD display, the efficient Intel Celeron J6412 processor and a fanless design ensures high stability, long service life and minimal maintenance requirements.

The die-cast aluminum enclosure provides excellent heat dissipation, high mechanical strength and resistance to vibration. The IP65-rated front panel makes the Conpanel Pro 270-W29 an ideal solution for factory floors, production lines and HMI or SCADA applications where durability and reliability are critical.

Large 27” Full HD display – clarity and operator comfort

The Conpanel Pro 270-W29 features a 27-inch TFT LCD display with a resolution of 1920×1080 and a 16:9 aspect ratio. Wide 89° viewing angles and a 1000:1 contrast ratio ensure excellent readability of operator interfaces and process visualizations, even during long working shifts.

Performance powered by Intel Celeron J6412

At the core of the Conpanel Pro 270-W29 is the quad-core Intel Celeron J6412 processor running at 2.0 GHz (up to 2.6 GHz), supported by Intel UHD Graphics. This platform delivers stable performance for industrial applications, visualization software and control systems operating in continuous mode.

Comprehensive industrial connectivity

The Conpanel Pro 270-W29 offers a wide range of communication interfaces for seamless integration with automation equipment and higher-level systems. Available interfaces include Gigabit Ethernet ports, USB 2.0 and USB 3.0, serial COM ports (RS232 with optional RS485 or RS422), an HDMI output supporting up to 4K resolution and audio interfaces.

Key features of the Conpanel Pro 270-W29 industrial panel PC

• 27-inch Full HD TFT LCD display (1920×1080)
• Intel Celeron J6412 processor for reliable 24/7 operation
• Fanless design for maintenance-free industrial use
• IP65-rated front panel for harsh environments
• Robust aluminum enclosure with excellent heat dissipation
• Expandable RAM up to 32 GB
• Rich interface set: LAN, USB, COM and HDMI
• Wireless connectivity: dual-band Wi-Fi and Bluetooth 5.0
• Wide-range industrial power input 12–36 V DC
• Support for Windows and Linux operating systems
• Flexible mounting options including VESA and panel mounting

Flexible installation and readiness for harsh environments

The Conpanel Pro 270-W29 supports VESA 75×75 and 100×100 mounting, wall installation and arm mounting solutions. Its wide operating temperature range and industrial-grade power supply make it a reliable choice for applications requiring long-term stability and resistance to challenging conditions.

Need technical support or help selecting the right solution? Contact Consteel Electronics.
